Worm Gear Set 1 Module 1:20 Reduction Rate(Gear-8mm Bore, Rod 8mm Bore)

9,65 €14,79 €34% OFF
Menge

Beschreibung

Descriptions:

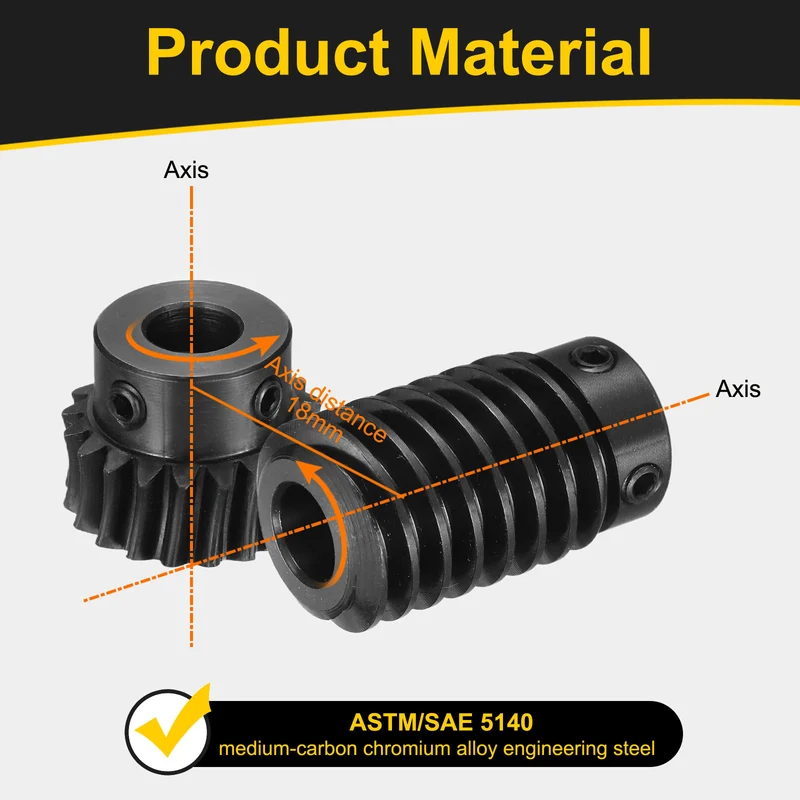

  • Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems.
  • Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:30, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.
  • Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.

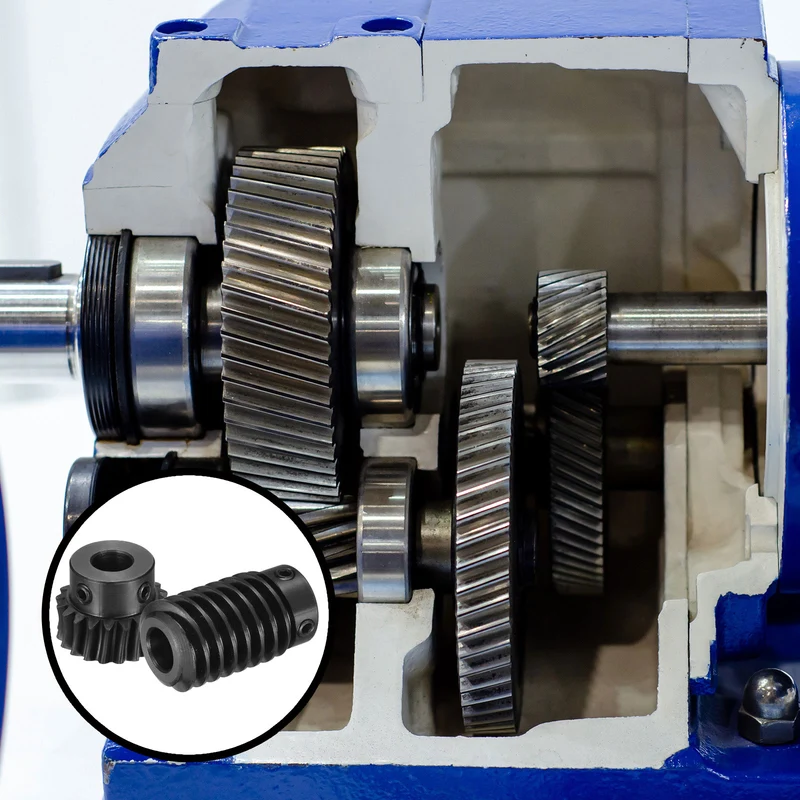

  • Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

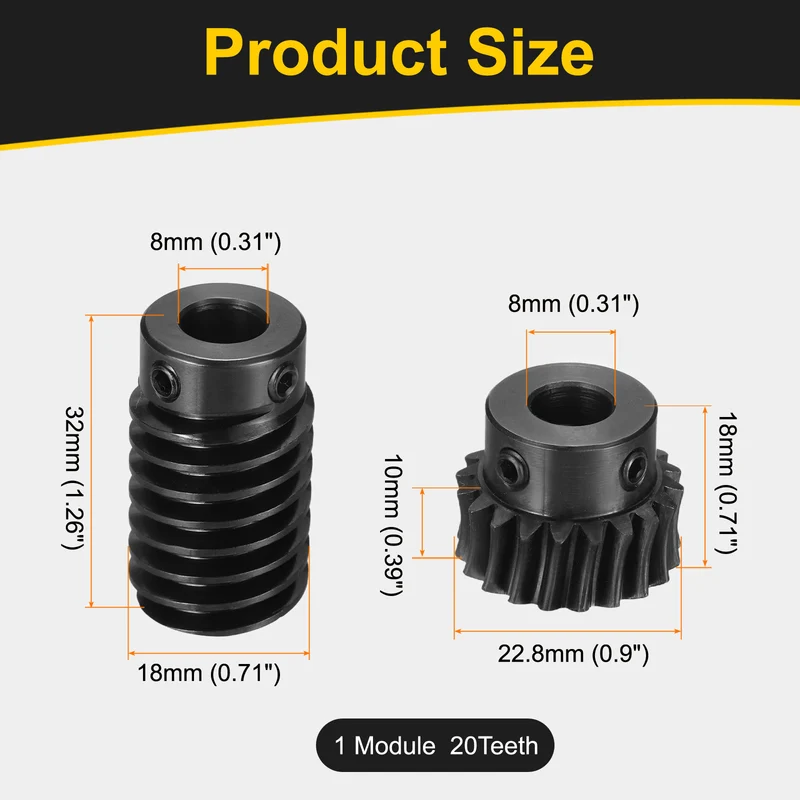

Specifications:
  • Modulus: 1
  • Gear Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Worm Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Gear Hole: 8mm (0.31")
  • Worm Hole: 8mm (0.31")
  • Gear Tooth Count: 20 Teeth
  • Worm Total Length: 32mm (1.26")
  • Worm Outer Diameter: 18mm (0.71")
  • Gear Thickness: 10mm (0.39")
  • Gear Outer Diameter: 22.8mm (0.9")
  • Center Distance: 18mm (0.71")
  • Rotation: Right
Package Includes: 1 Set x Worm Gear Set
