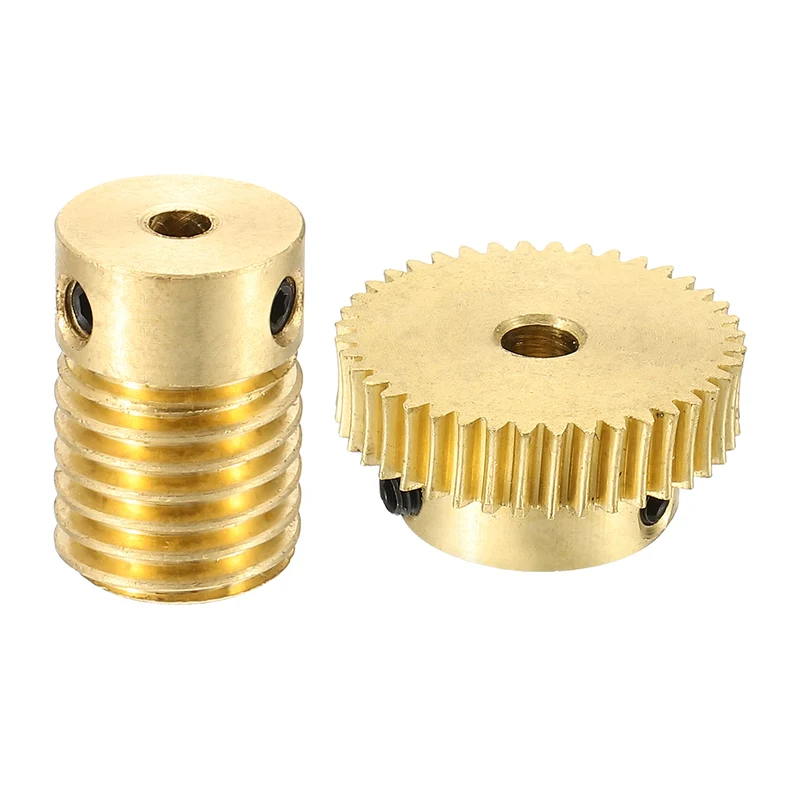

Worm Gear Set 0.5 Module 1:40 Reduction Rate(Gear-4mm Bore, Rod 3mm Bore)

6,33 €9,09 €30% OFF
Menge

Beschreibung

Descriptions:

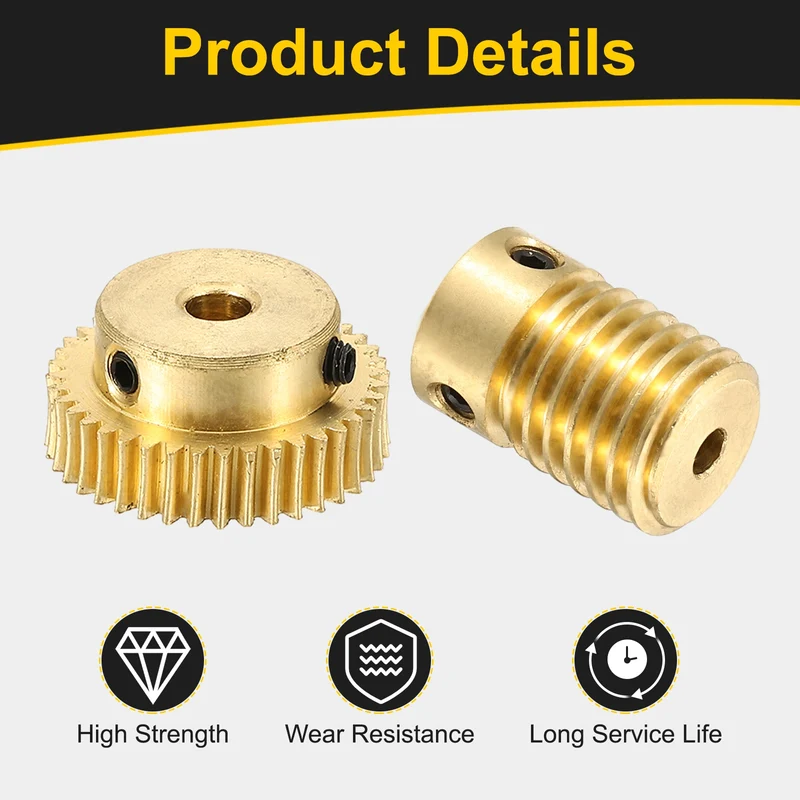

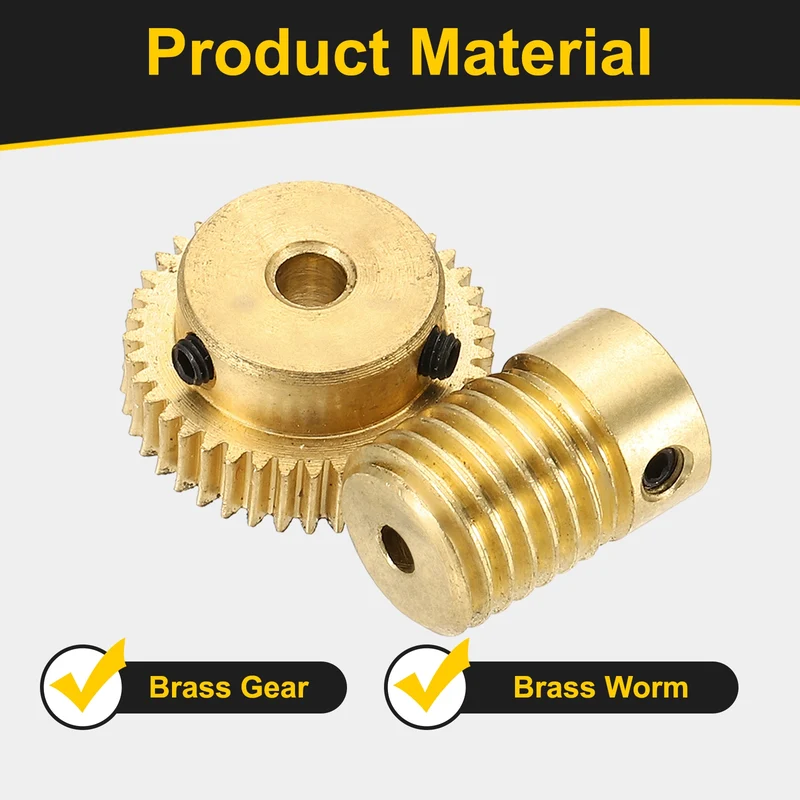

  • Material - The gear and worm are made of brass, which has excellent wear resistance and low friction coefficient, ensuring that the product maintains stable performance during long-term use.
  • Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:40, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.
  • Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.

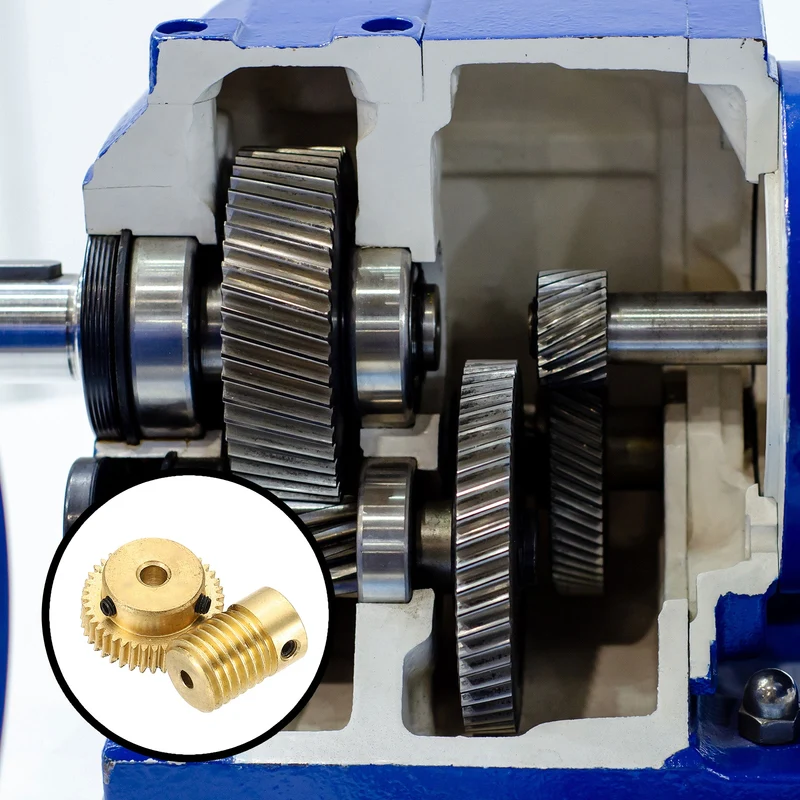

  • Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

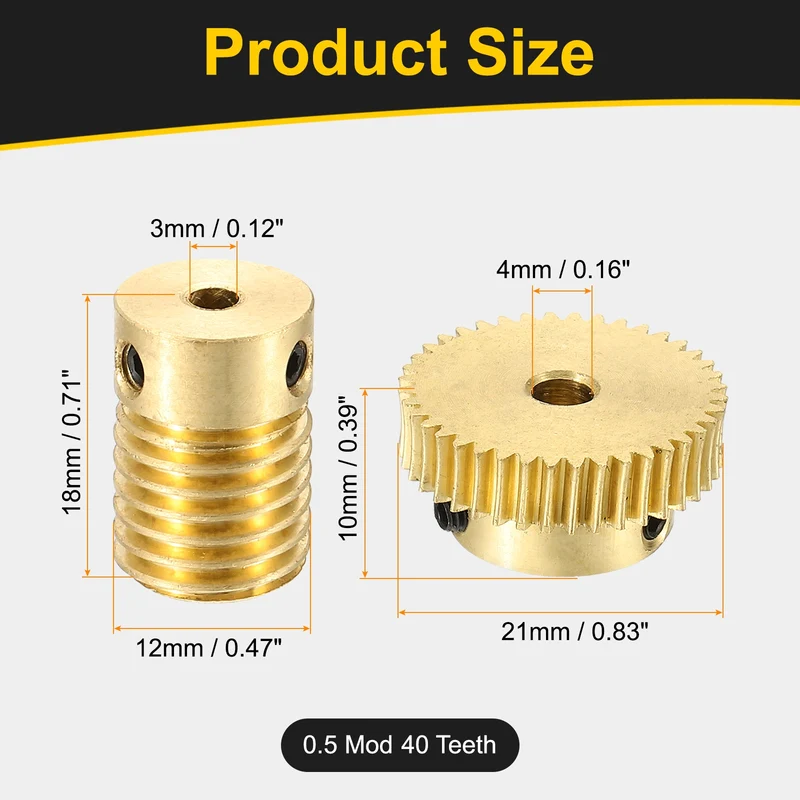

Specifications:
  • Modulus: 0.5
  • Gear Material: Brass
  • Worm Material: Brass
  • Gear Hole: 4mm (0.16")
  • Worm Hole: 3mm (0.12")
  • Gear Tooth Count: 40 Teeth
  • Worm Total Length: 18mm (0.71")
  • Worm Outer Diameter: 12mm (0.47")
  • Gear Thickness: 5mm (0.2")
  • Gear Outer Diameter: 21mm (0.83")
  • Center Distance: 15.5mm (0.61")
  • Rotation: Right

Package Includes: 1 Set x Worm Gear Set
