Anbieter: uxcell

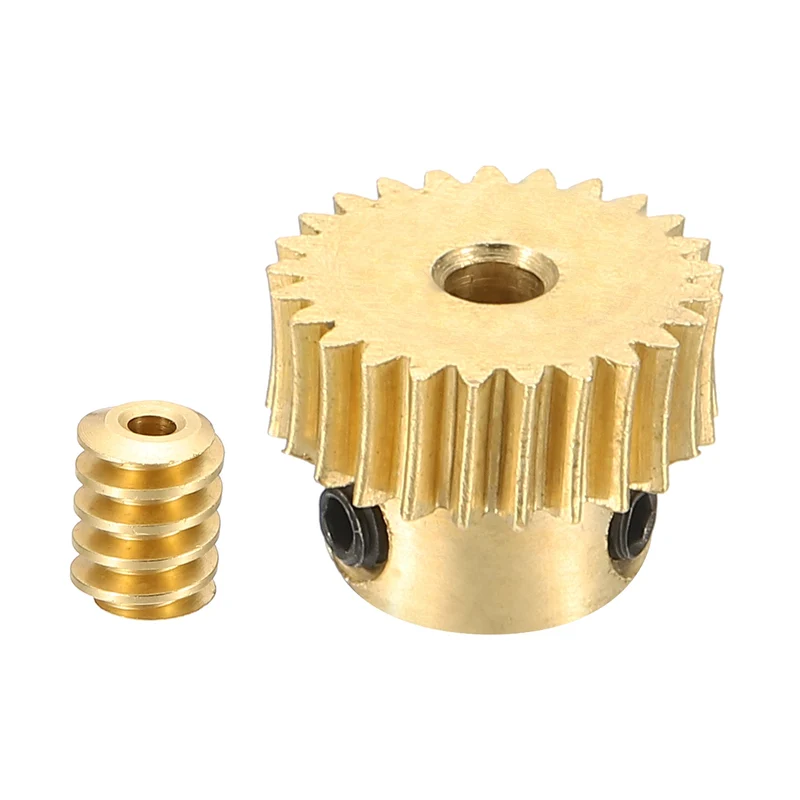

Worm Gear Set 0.5 Module 1:25 Reduction Rate(Gear-3mm Bore, Rod 1.98mm Bore)

4,81 €7,81 €38% OFF
Menge

Beschreibung

Descriptions:

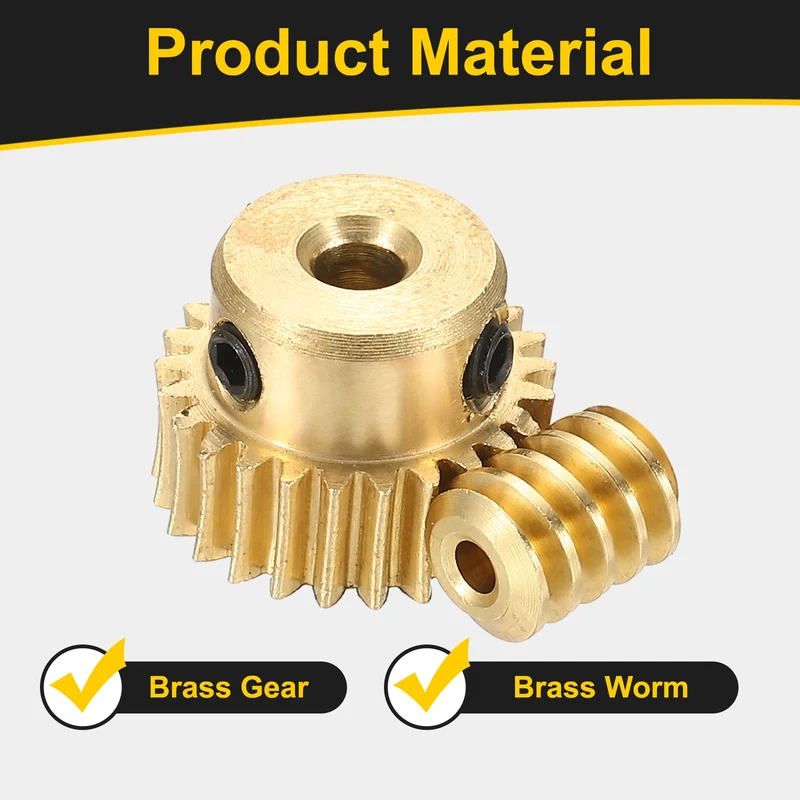

  • Material - The gear and worm are made of brass, which has excellent wear resistance and low friction coefficient, ensuring that the product maintains stable performance during long-term use.

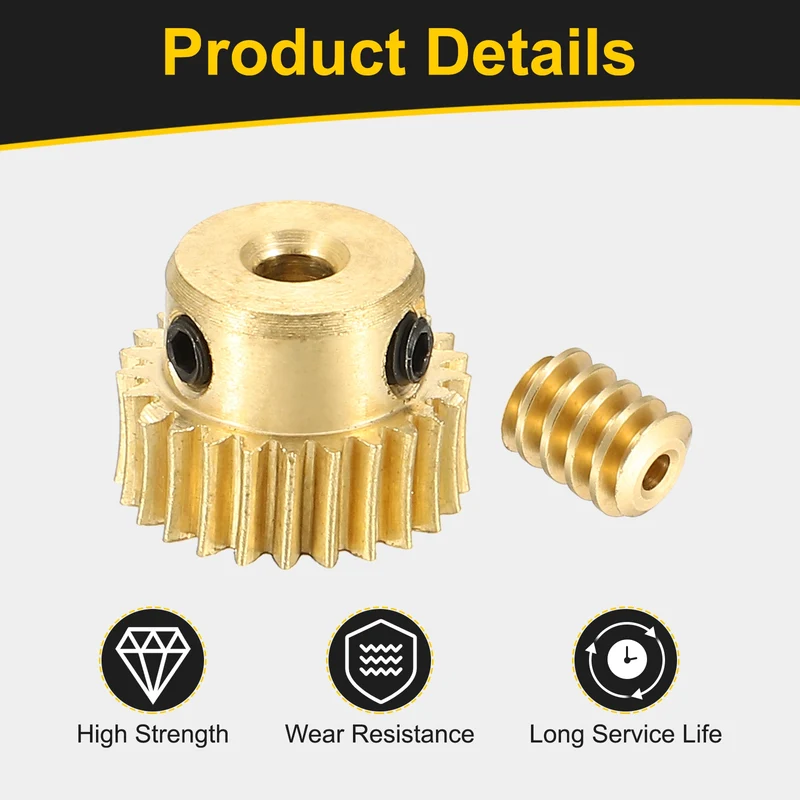

  • Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:25, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.
  • Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.
  • Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

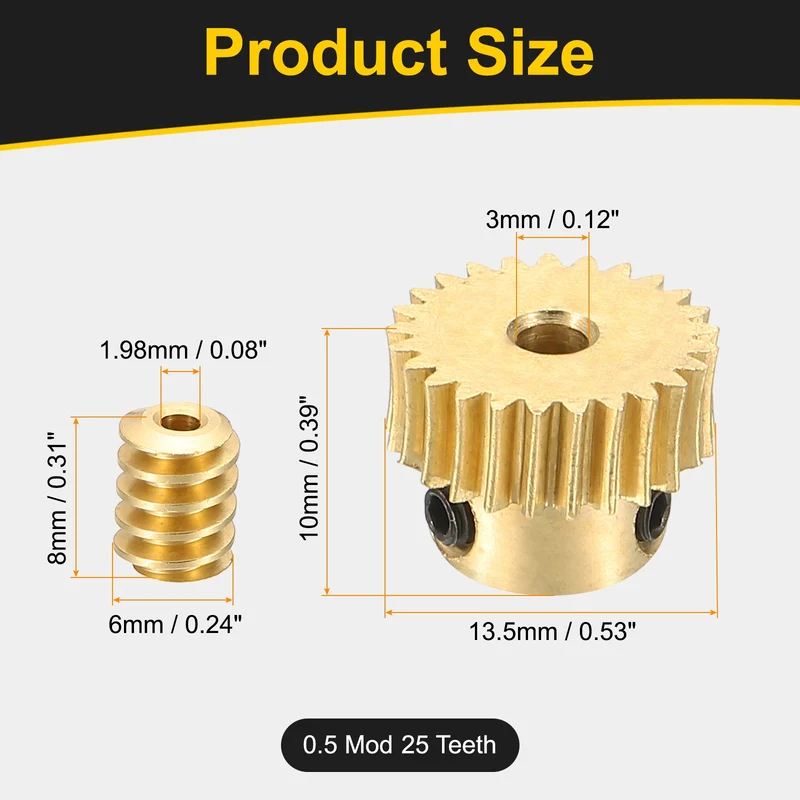

Specifications:
  • Modulus: 0.5
  • Gear Material: Brass
  • Worm Material: Brass
  • Gear Hole: 3mm (0.12")
  • Worm Hole: 1.98mm (0.08")
  • Gear Tooth Count: 25 Teeth
  • Worm Total Length: 8mm (0.31")
  • Worm Outer Diameter: 6mm (0.24")
  • Gear Thickness: 5mm (0.2")
  • Gear Outer Diameter: 13.5mm (0.53")
  • Center Distance: 8.75mm (0.34")
  • Rotation: Right

Package Includes: 1 Set x Worm Gear Set
