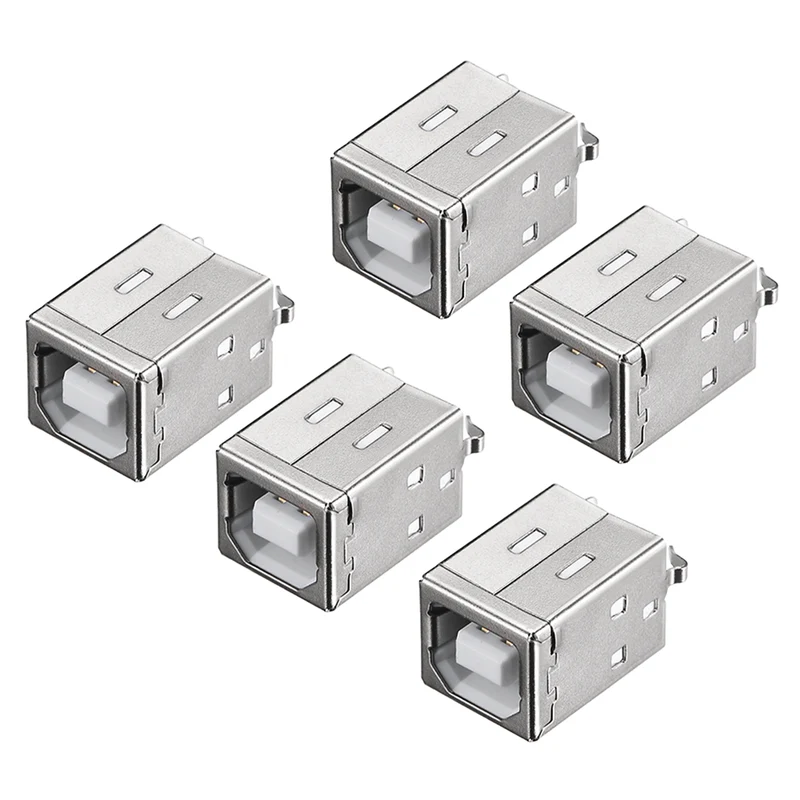

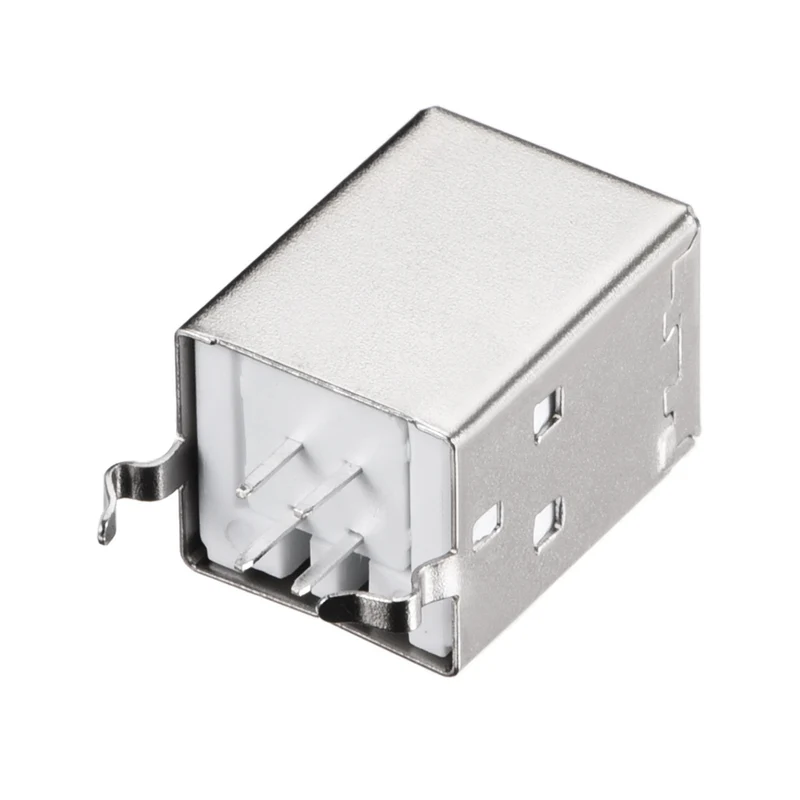

PCB USB Connector B Type Female Jack 180 Degree DIP Vertical Straight Insert 5Pcs

Specification:
Interface Type: USB Female
Pin Quantity: 4

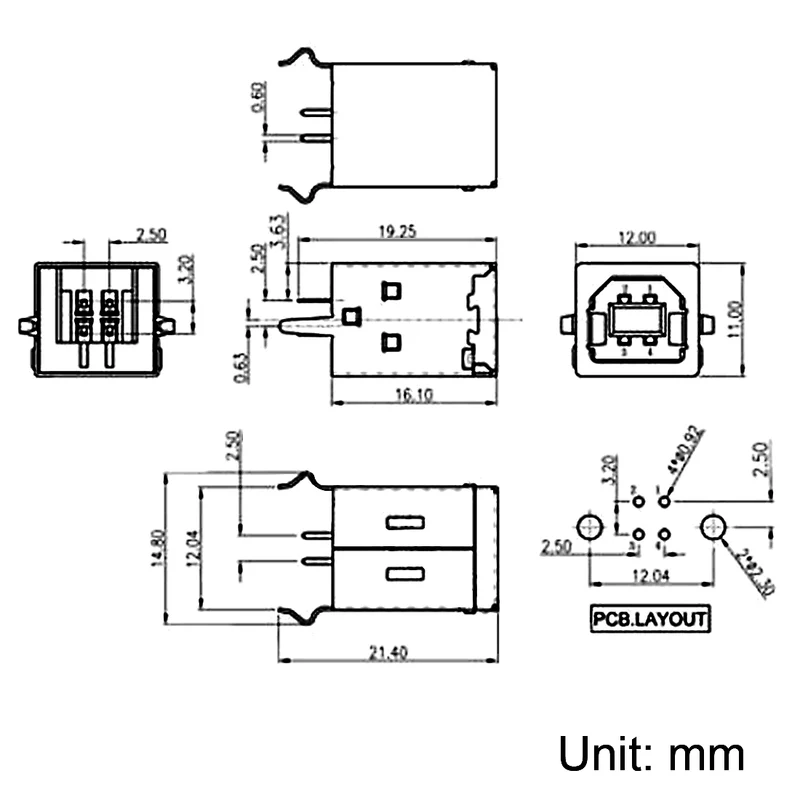

Pin Distance: 2.5mm
Mounting Foot Quantity:2
Mounting Foot Distance: 14.8mm

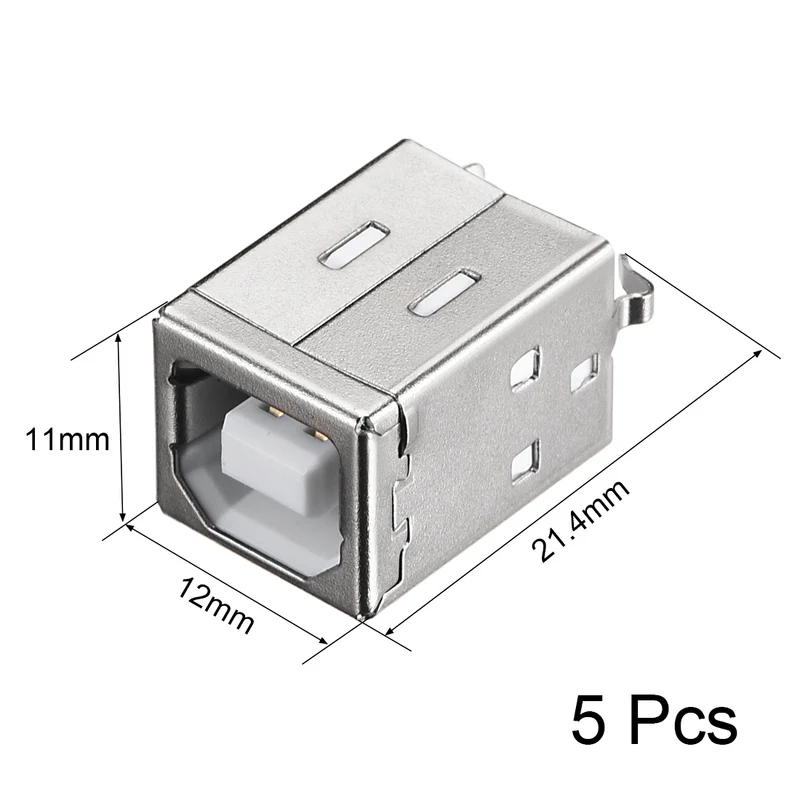

Dimension: 21.4x 12 x 11mm(L*W*H)
Voltage: 30V
Current: 1.5A
Contacts Material: Copper
Color: Silver Tone,White

Package Content:
5pcs x PCB USB Connector

Description:
PCB USB connector for DIY.
Suitable for mini USB application: MP3 player,digital video and camera, GPS, printer, frame, mouse, keyboard, flash drive or cable.
