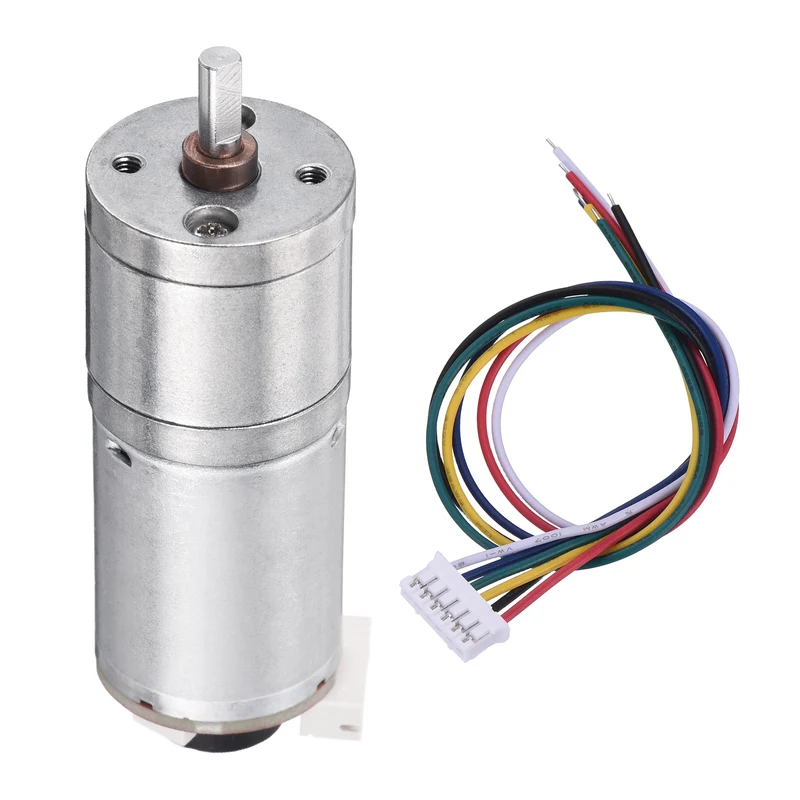

GA25-370 DC 6V Micro Geared Motor with Hall Encoder 25mm Shaft 1:377 Ratio

About the Product:
This is a low-speed micro geared motor with a built-in hall encoder. It is designed to convert electrical energy into rotational motion with precise speed control and position feedback, mainly used in DIY robotics, electric doors, mini mixers, monitoring equipment, automatic door locks, and small industrial equipment where accurate movement tracking is required.

Good Choice for You:

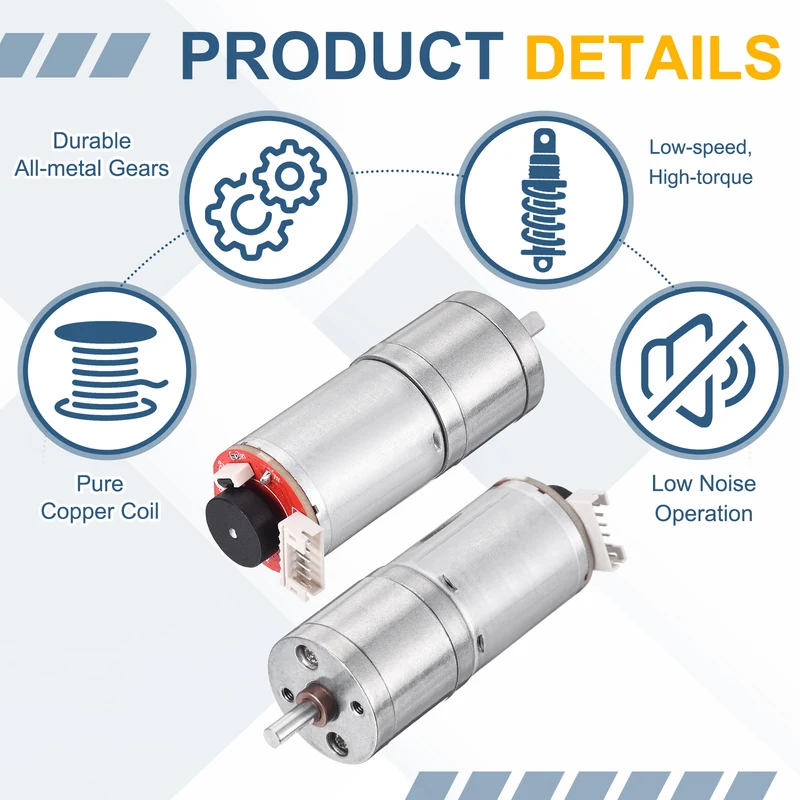

This DC gear motor delivers low-speed, high-torque output with low noise, adopts a pure copper coil for lower heat generation and electrical loss, uses all-metal gears to resist wear and prevent tooth breakage, extending service life, and offers high durability and stable operation under load thanks to its high-precision metal gear train.

Specification:

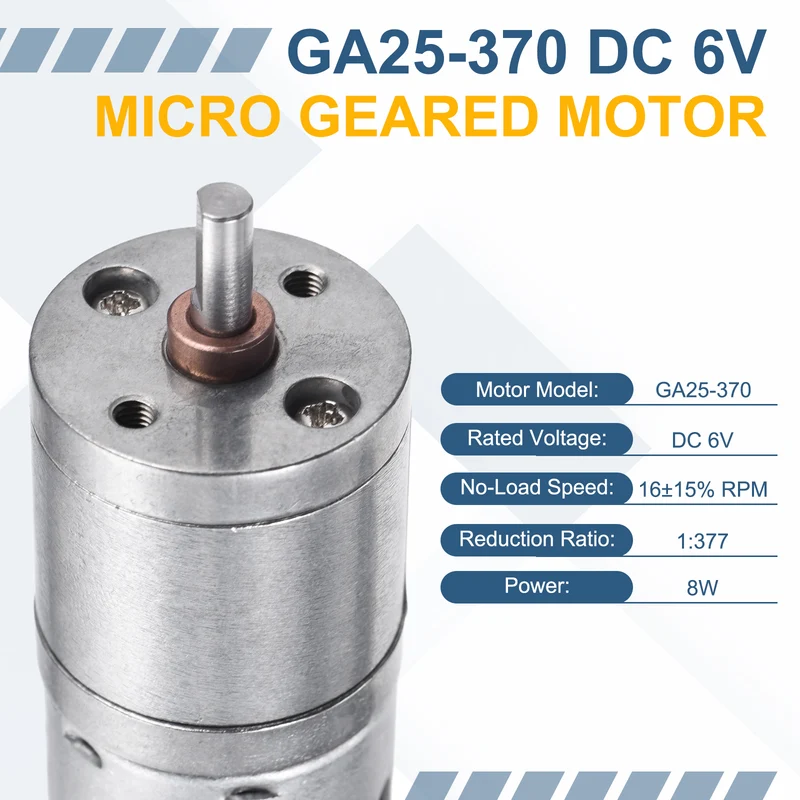

Motor Model: GA25-370
Rated Voltage: DC 6V
No-Load Speed: 16 15% RPM
Reduction Ratio: 1:377
Power: 8W

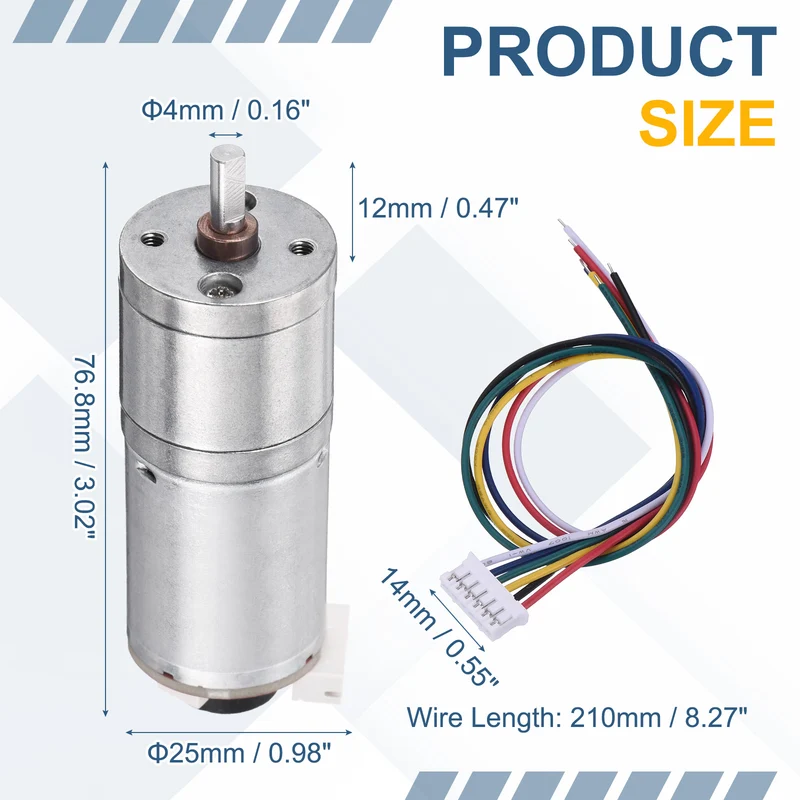

Output Shaft Diameter: 4mm / 0.16 Inch
Output Shaft Length: 12mm / 0.47 Inch
Motor Diameter: 25mm / 0.98 Inch
Total Length: 76.8mm / 3.02 Inch
Motor Color: Silver
Encoder Dimensions: 210x14mm / 8.27x0.55 Inch
In the package of: 1 Set Micro Motor with Hall Encoder

Easy to Install:
Mount the electric gear motor to your project frame using appropriate brackets. Connect the DC power supply to the motor terminals. Connect the encoder output wires to your control board for position feedback.

Tips:
Please confirm the shaft diameter and voltage requirements match your project specifications before ordering the reduction motor. When connecting the encoder wires, avoid pulling on them directly to protect the internal connections.
