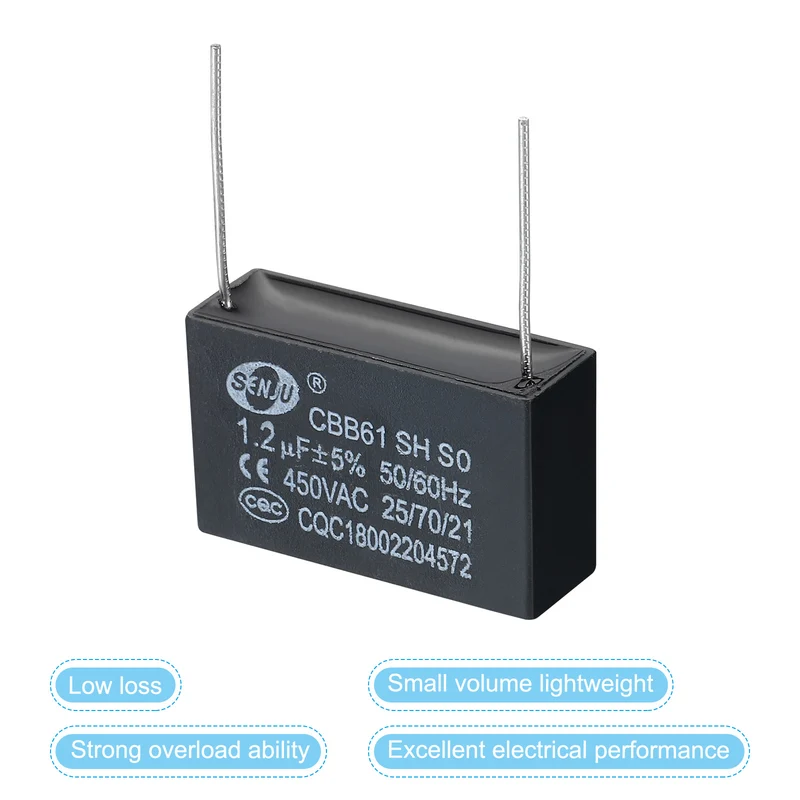

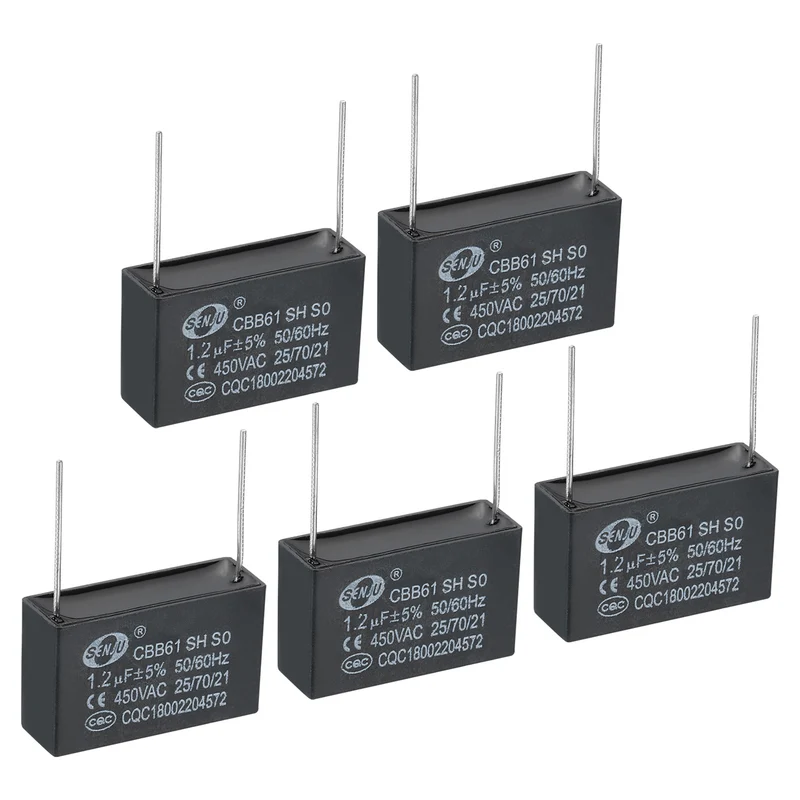

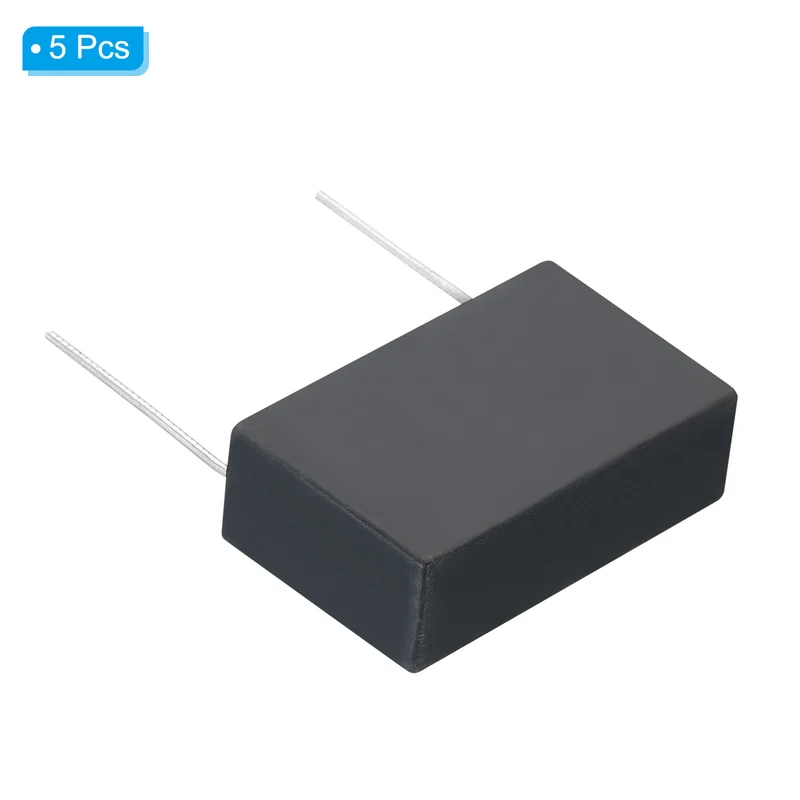

CBB61 Ceiling Fan Capacitor, 5Pcs 1.2uF 450V AC 50/60HZ with 2Pins 36x12x22mm

CBB61 capacitor is a metalized polypropylene film capacitor, which is mostly used in AC motors, used as a starting capacitor for fans and air conditioners to maintain motor operation, and also can use for range hood fans, air exchange fans, pumps, motors, generator, etc.

Specification:

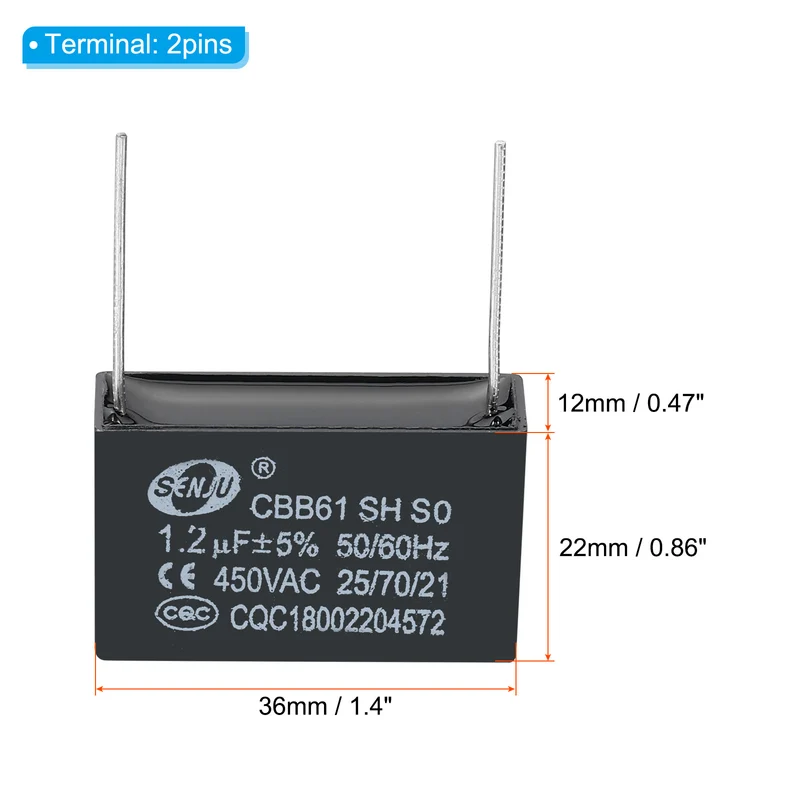

Model: CBB61; Material: Polypropylene Film Plastic Shell; Terminal: 2pins; Tolerance: 5%; Rated Capacity: 1.2uF; Climatic Category: 25/70/21; Body Size:36 x 12 x 22mm/1.4 x 0.47 x 0.86inch(L x W x H); Shell Color: Black; Rated Voltage: 450V AC; Rated Frequency:50/60Hz; Pack of 5Pcs CBB61 Capacitor

Advantage:
This CBB61 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.

Instruction:
Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.

NOTE: Please pay attention not to over current or over voltage when using
