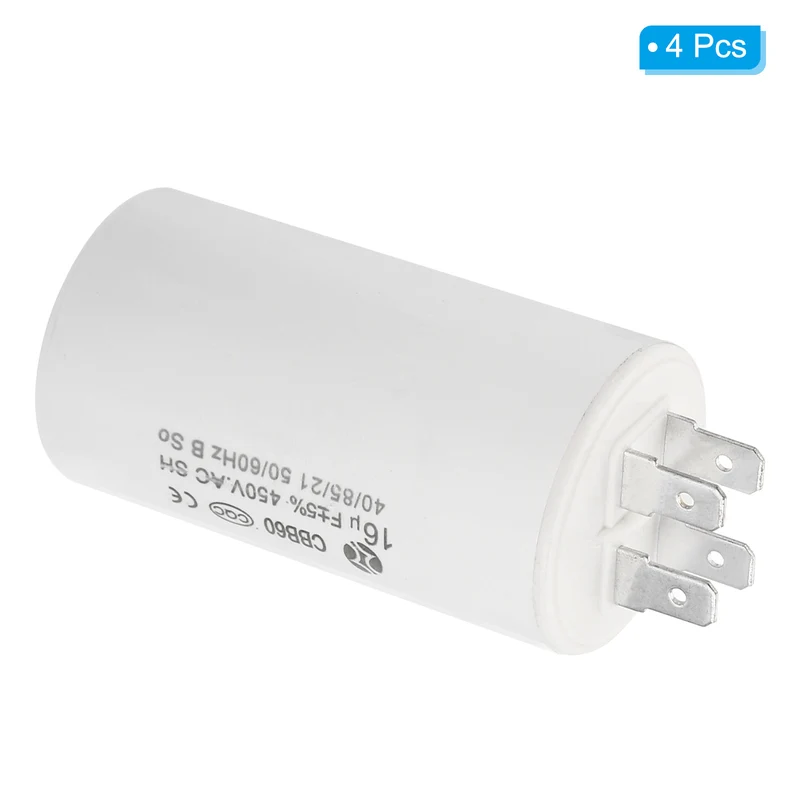

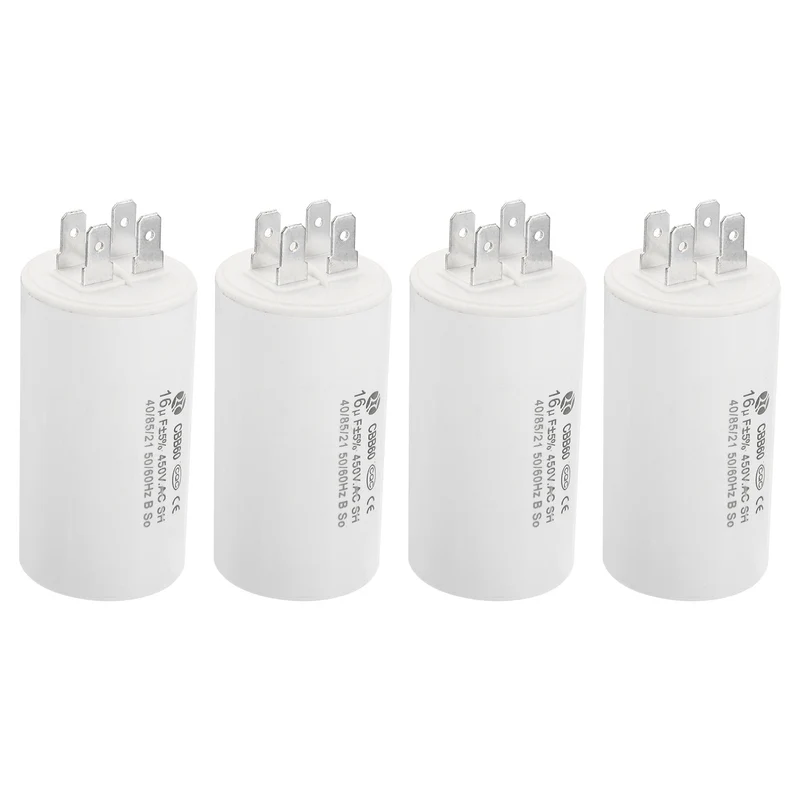

CBB60 16uF Running Capacitor,4Pcs AC450V 4 Pins 50/60Hz Cylinder 1.44x2.73inch

Suitable for the start-up of single-phase motors with frequency of 50Hz and 60Hz, such as air compressors, water pumps, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, drills, splitters, saws, grinders, etc.



Specification:

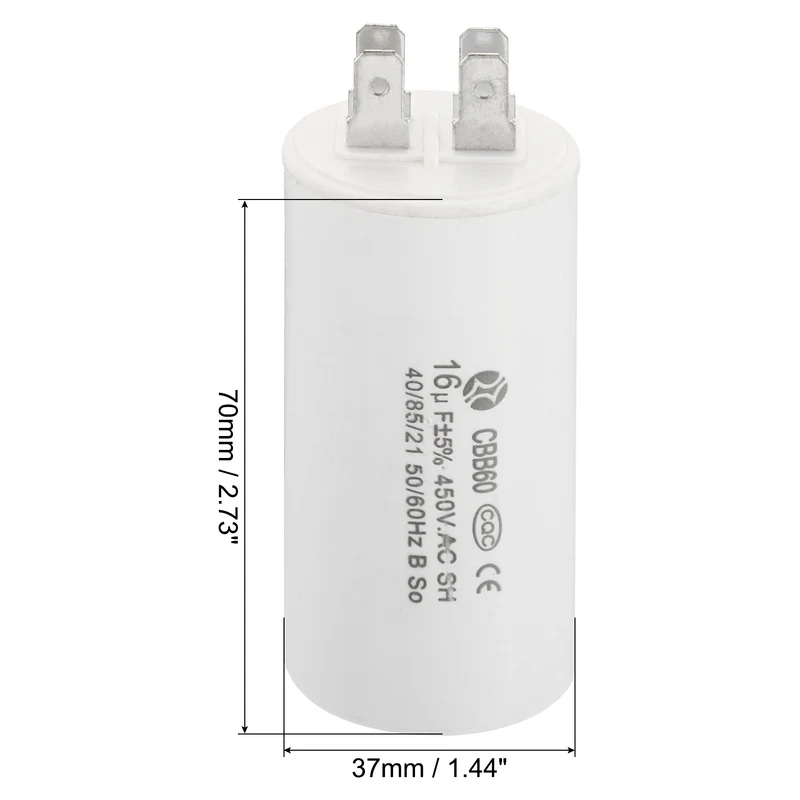

Model: CBB60;Material: Polypropylene Film; PP shell; Lead End: 4 pins;Tolerance: 5%;Rated Capacity: 16uF;Rated Voltage: 450VAC;Rated Frequency: 50/60Hz;Climatic Category: 40/85/21;Body Size: 37 x 70mm/1.44 x 2.73inch(D x H);Pack with 4Pcs CBB60 Capacitor


Advantage:

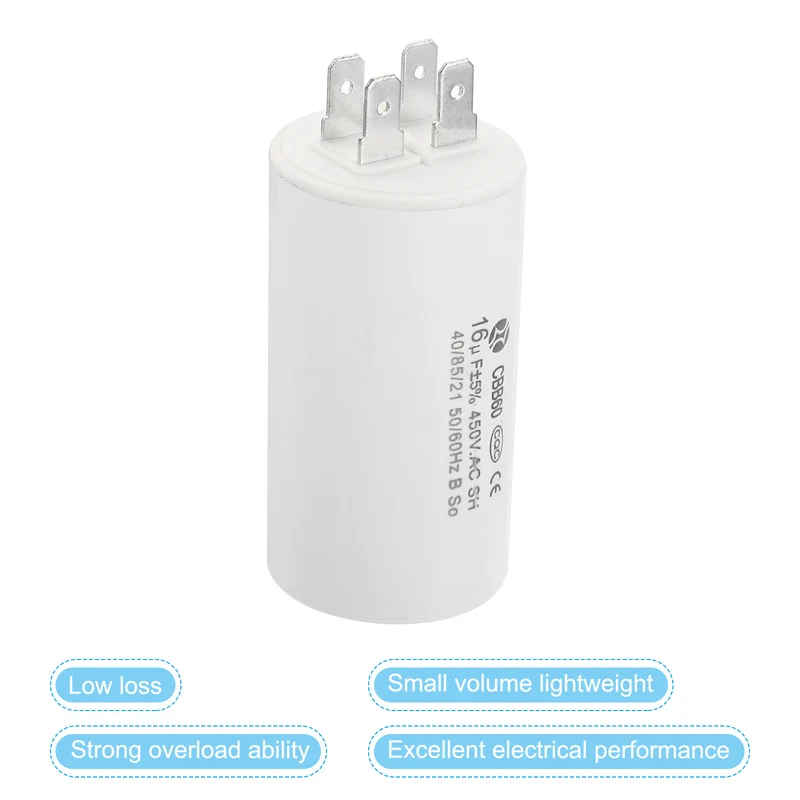

This CBB60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.


Instruction:

Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.



NOTE: Please pay attention not to over current or over voltage when using
