#25 Chain Roller Sprocket 12mm Bore, 22 Tooth with 4x1.8mm Keyway, Black

6,52 €9,66 €32% OFF
Menge

Beschreibung

Description:
  • Material - The sprocket is made of C45 carbon steel with a full black oxide coating, which is rust-proof. The tooth part uses high-temperature quenching heat treatment, high hardness, wear resistance, a long service life, and is easy to use.
  • Design - Each roller sprocket is equipped with strong teeth to lock the chain well. The round hole has set screws and forms a 90-degree angle with the set screw after installation, which can fix the shaft and prevent it from slipping.
  • Installation - Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
  • Wide Application - Sprockets can be used in various industrial areas, especially in power transmission industrial machinery, such as milling machines, drilling machines, drilling rigs, or other mechanical transmission occasions.

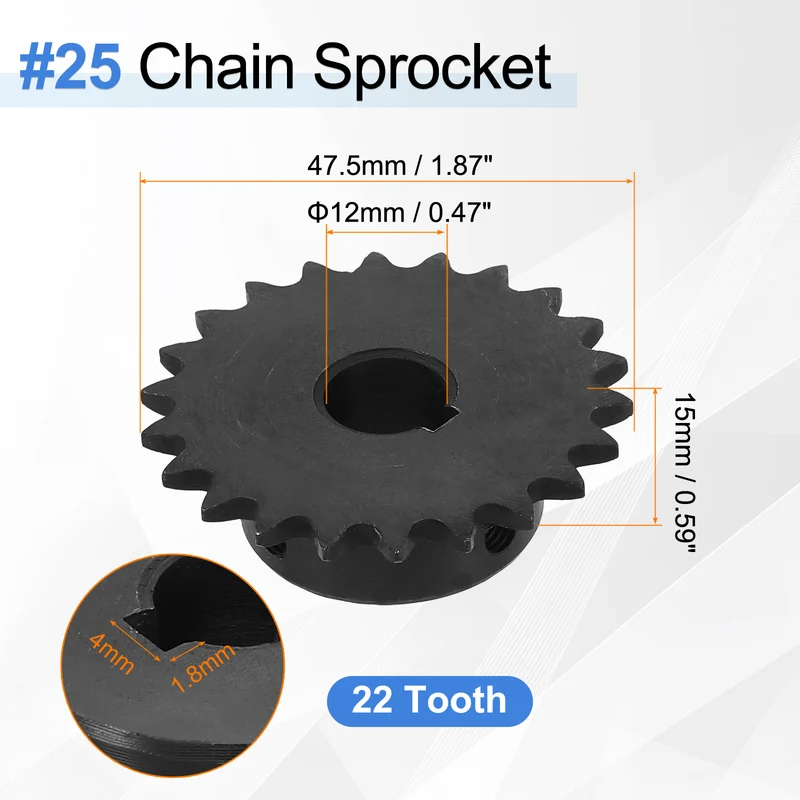

Specification:
  • Material: C45 Carbon Steel
  • Number of Teeth: 22
  • Outside Diameter: 47.5mm / 1.87-inch
  • Bump Width: 12mm / 0.47-inch
  • Total Thickness: 15mm / 0.59-inch
  • Bore Diameter: 12mm / 0.47-inch
  • Pitch: 1/4-inch / 6.35mm
  • Tooth Thickness: 3mm/ 0.12-inch
  • Set Screw Size: M5

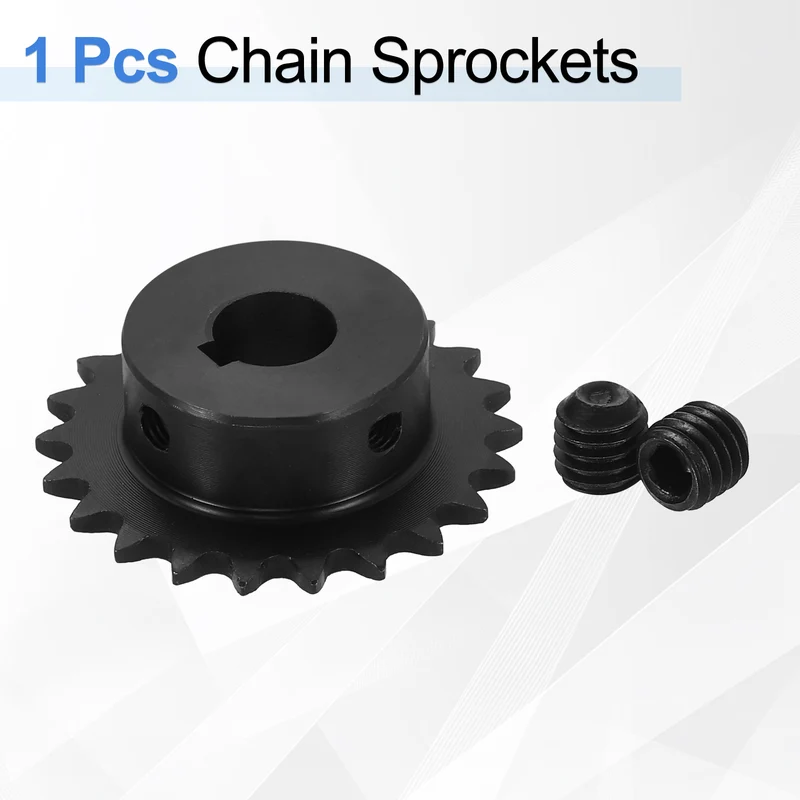

Package Content:

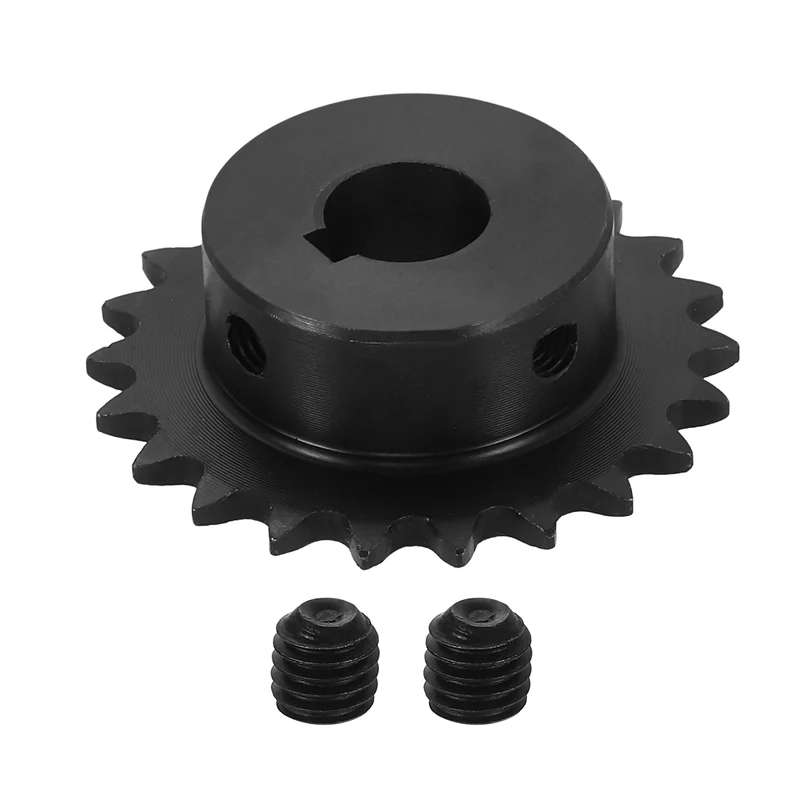

  • 1 x Chain Sprocket
  • 2 x Set Screws
