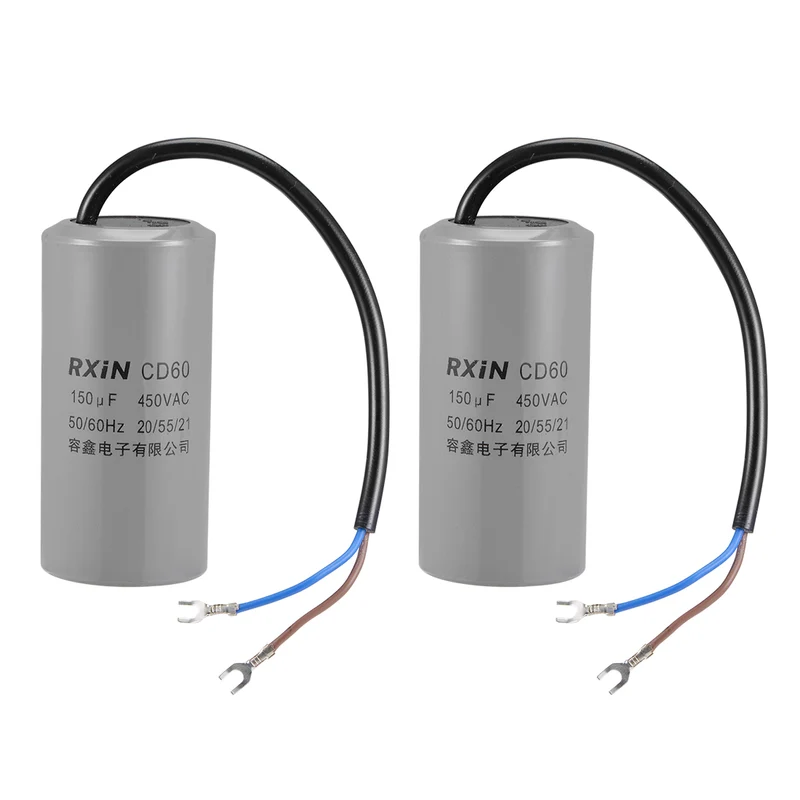

150uf Motor Star Capacitor 150mfd AC 450V for Single-Phase 50/60Hz AC Motor 2Pcs

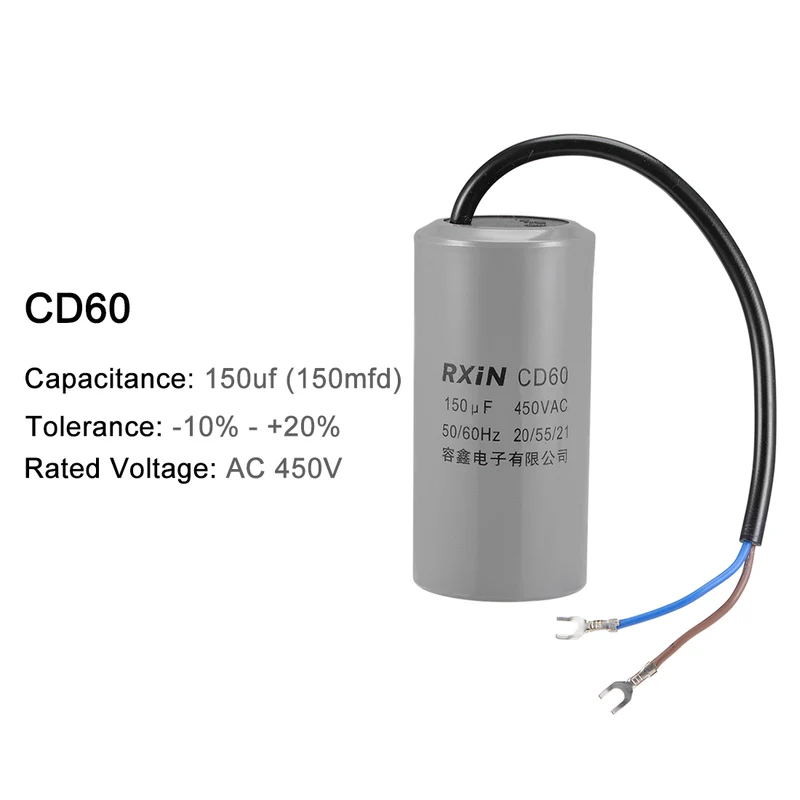

Specification:
Capacitance: 150uf (150mfd)
Tolerance: -10% - +20%
Rated Voltage: AC 450V
Frequency: 50/60 Hz
Operating Temperature: -20 -55

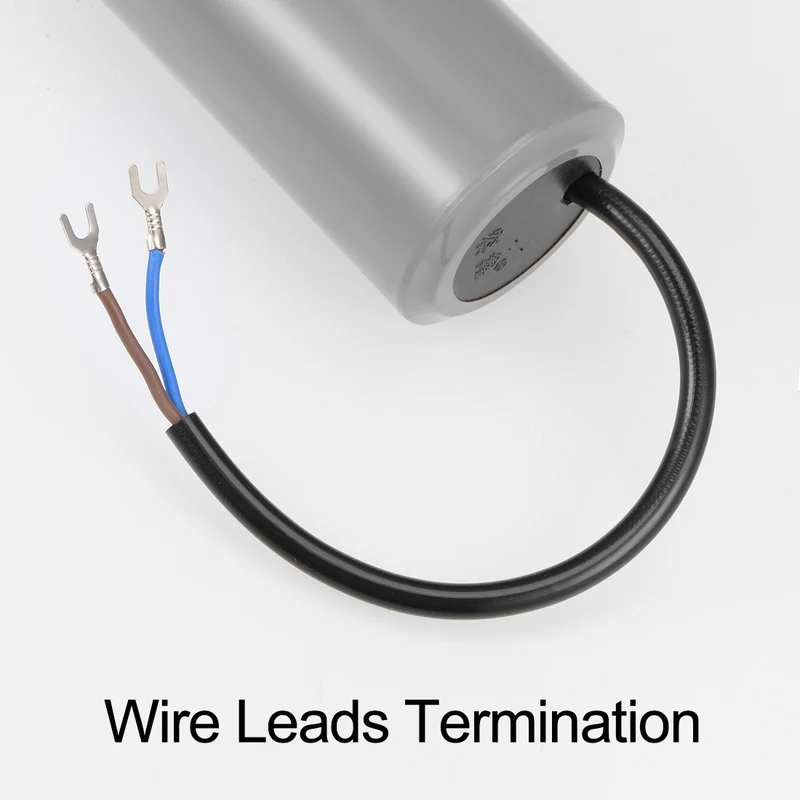

Terminal Type: Insulated Wire Leads

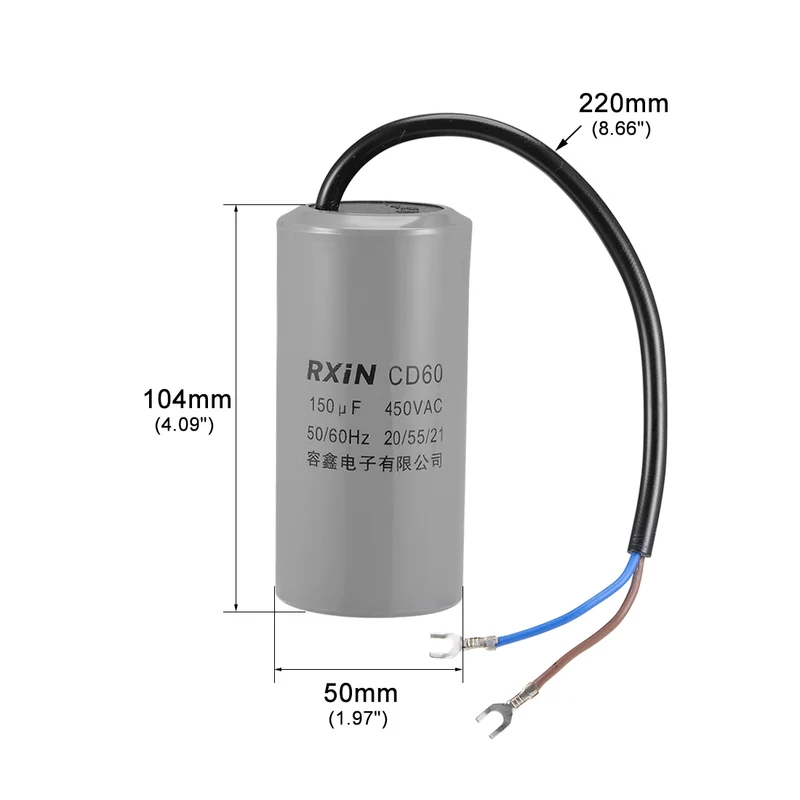

Dimensions:
Case Diameter: 50mm (1.97")
Case Height: 104mm (4.09")
Wire Length: 220mm (8.66")

About CD60 Capacitors:
-CD60 series aluminum electrolytic capacitor for starting A.C. motor are made of aluminum foil bar as the poles, alumina as dielectric, and semi-solid state electrolyte. All of the components are housed in plastic case.
-CD60 capacitors are designed with high electrical characteristics and are widely used in single phase A.C. motors with rated voltage 450V AC and the frequency of 50 Hz-60 Hz.
-CD60 capacitors are often used to get high rotary torque at low starting current and also the motor at a lower starting current under high torque.
-Be sure to match the V AC Rating and the uF or Microfarad Rating before purchasing.
