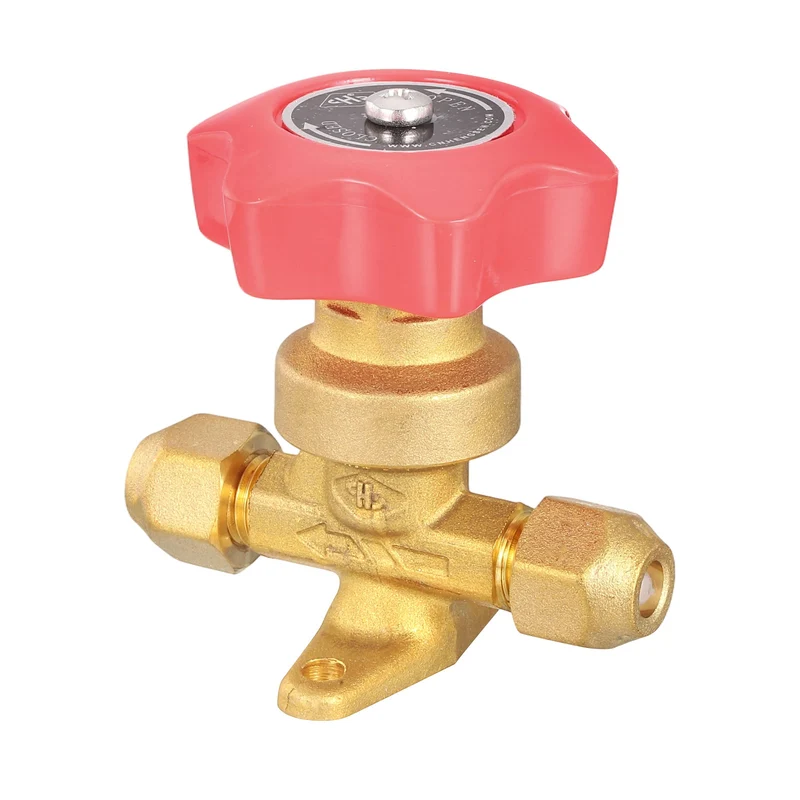

1/4 Inch Flare x 1/4 Inch Flare SAE Gas Valve Forged Brass One-way Hand Valve

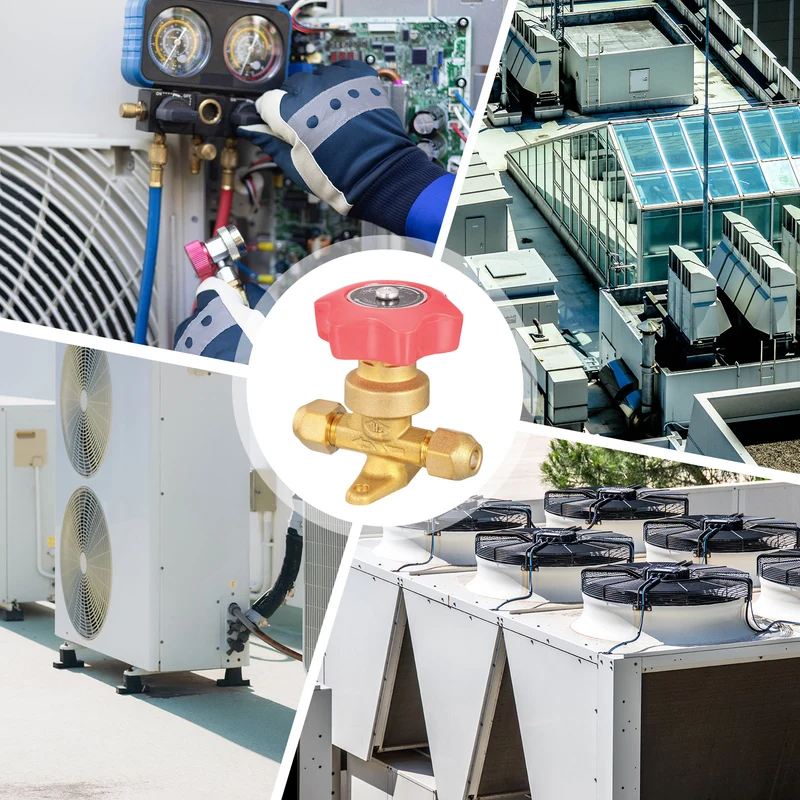

This flare valve is designed to be used in refrigeration systems, it acts as a shut-off point for the system, allows you to control the refrigerant or water flow easily, and saving time and effort during installation, troubleshooting, or routine maintenance tasks. Suitable for various commercial cold storage, industrial cold storage, low-temperature experimental chamber, freeze-drying equipment, etc.

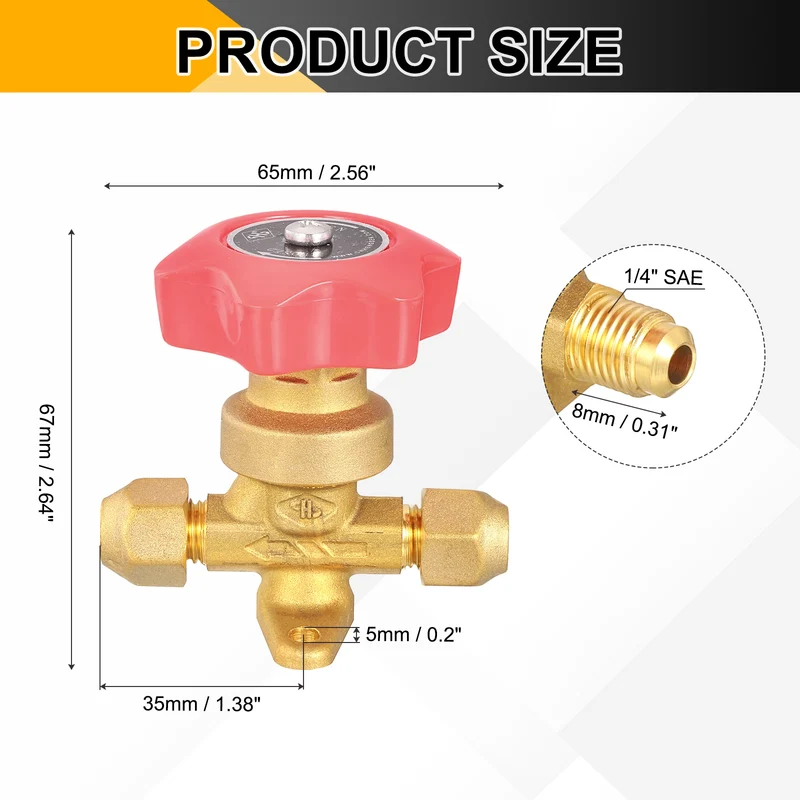

Specification
Inner Diameter: 6.35mm / 1/4"
Thread Size: 1/4" SAE
Thread Length: 8mm / 0.31"
Total Length: 67mm / 2.64"
Total Height: 65mm / 2.56"
Mounting Hole Diameter: 5mm / 0.2"
Hole Center Distance: 35mm / 1.38"
Package List: 1 Pcs x  Hand Valve

Advantage

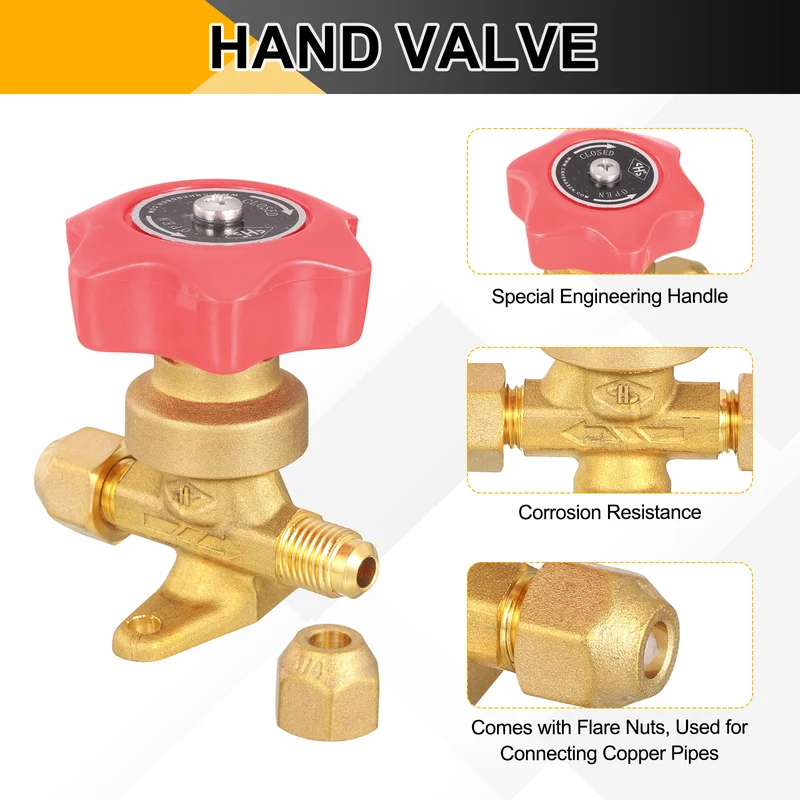

The flare gas valve uses high purity brass material as the raw material for the valve body, which is processed through precision forging technology and has excellent thermal conductivity and corrosion resistance. Combined with the dense structure brought by forging technology, the valve body has good strength and hardness.

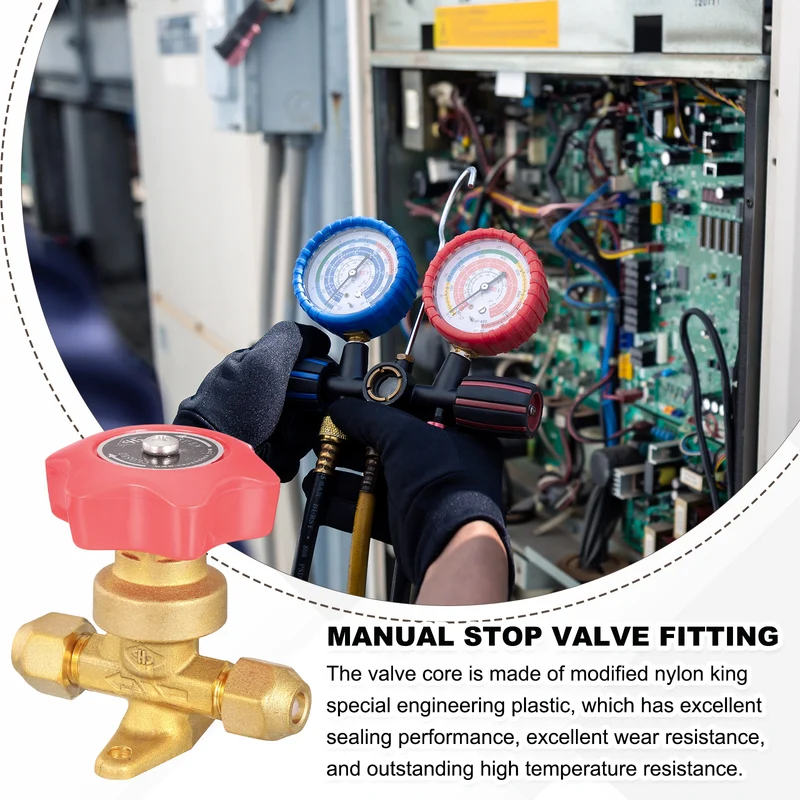

The valve core is made of modified nylon king special engineering plastic, which has excellent sealing performance, excellent wear resistance, and outstanding high temperature resistance.
The handle valve is one kind of manual stop valve and applicable to one-way flow, it can be used for the refrigerant pipes of refrigeration and air conditioning units, heating equipment etc.

Instruction
Turning the handwheel clockwise to close the valve, while turning it counterclockwise to open the valve; The fully open or fully closed state only requires one and a half turns. Adjust handwheel angle as needed to control flow and valve opening during use.

Note
Please do not use under working conditions exceeding the rated working pressure of the product (4.5MPa) or unsuitable media.
