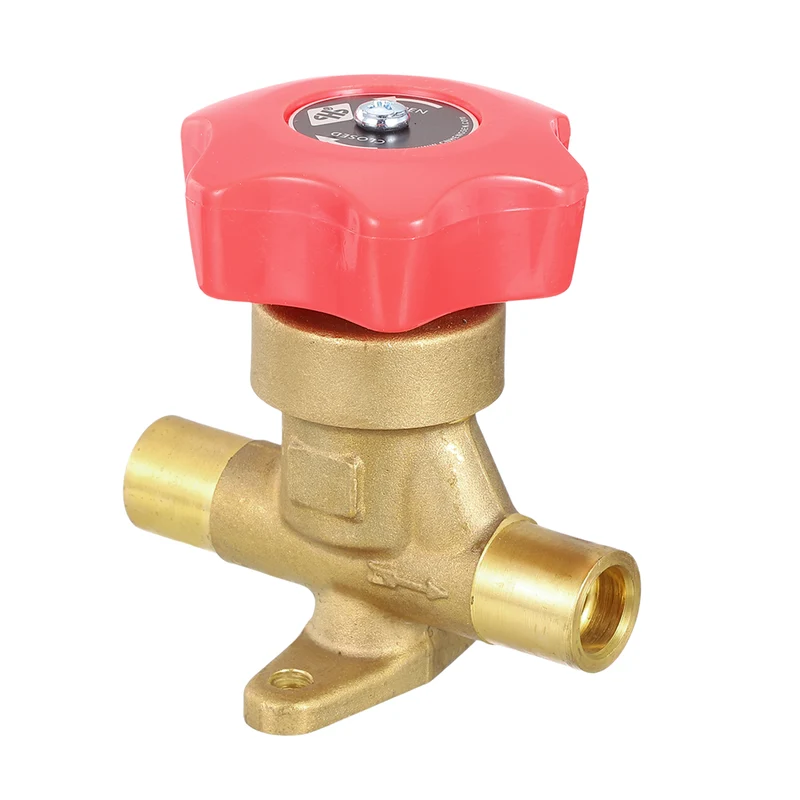

1/2 Inch Flare Gas Valve Forged Brass One-way Hand Valve

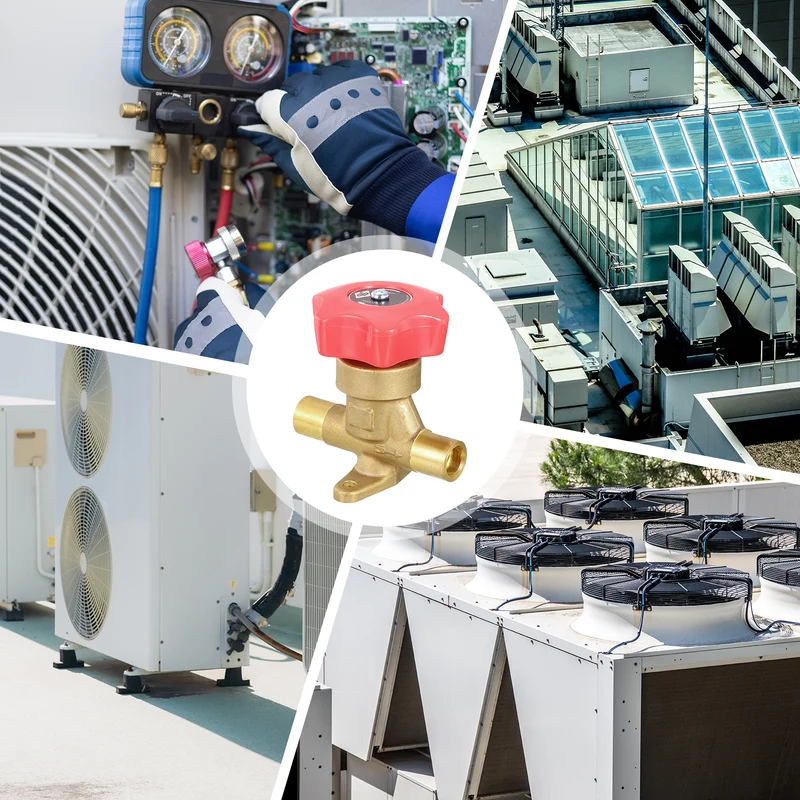

This hand valve is designed to be used in refrigeration systems, it acts as a shut-off point for the system, allows you to control the refrigerant or water flow easily, and saving time and effort during installation, troubleshooting, or routine maintenance tasks. Suitable for various commercial cold storage, industrial cold storage, low-temperature experimental chamber, freeze-drying equipment and other refrigeration systems.

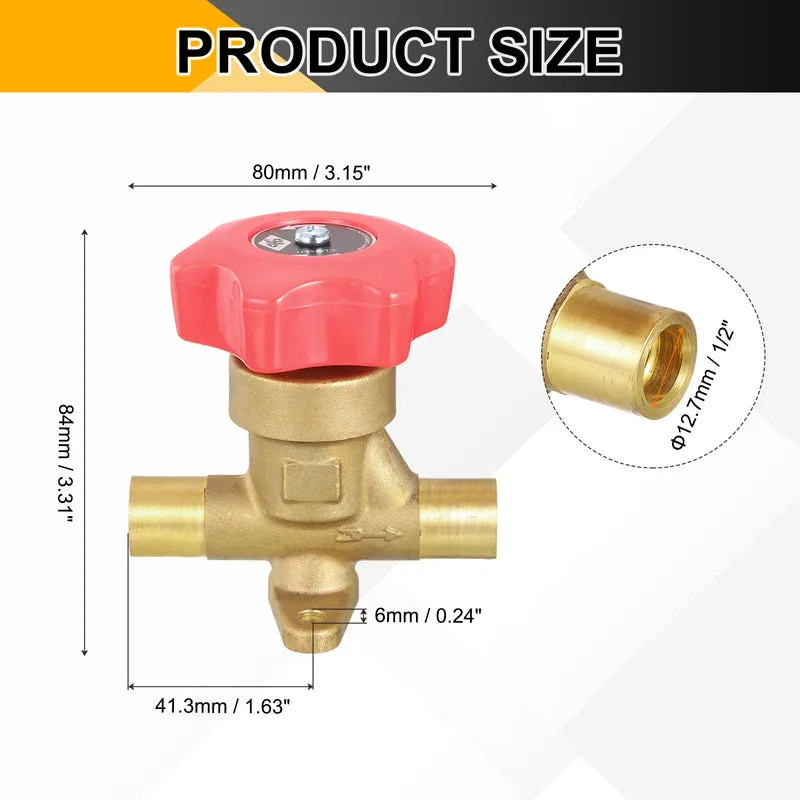

Specification
Inner Diameter: 12.7 mm / 1/2 inch
Total Height: 84 mm / 3.31 inch
Mounting Hole Diameter: 6 mm / 0.24 inch
Hole Center Distance: 41.3 mm / 1.63 inch
Package List: 1 Pcs x  Hand Valve

Advantage

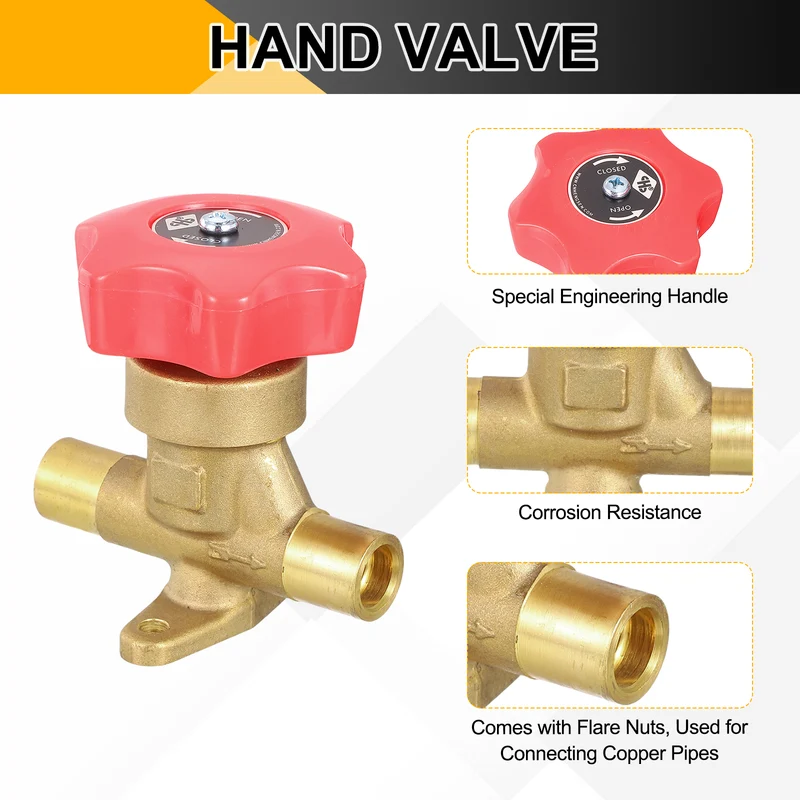

The hand gas valve uses high purity brass material as the raw material for the valve body, which is processed through precision forging technology and has excellent thermal conductivity and corrosion resistance. Combined with the dense structure brought by forging technology, the valve body has good strength and hardness.

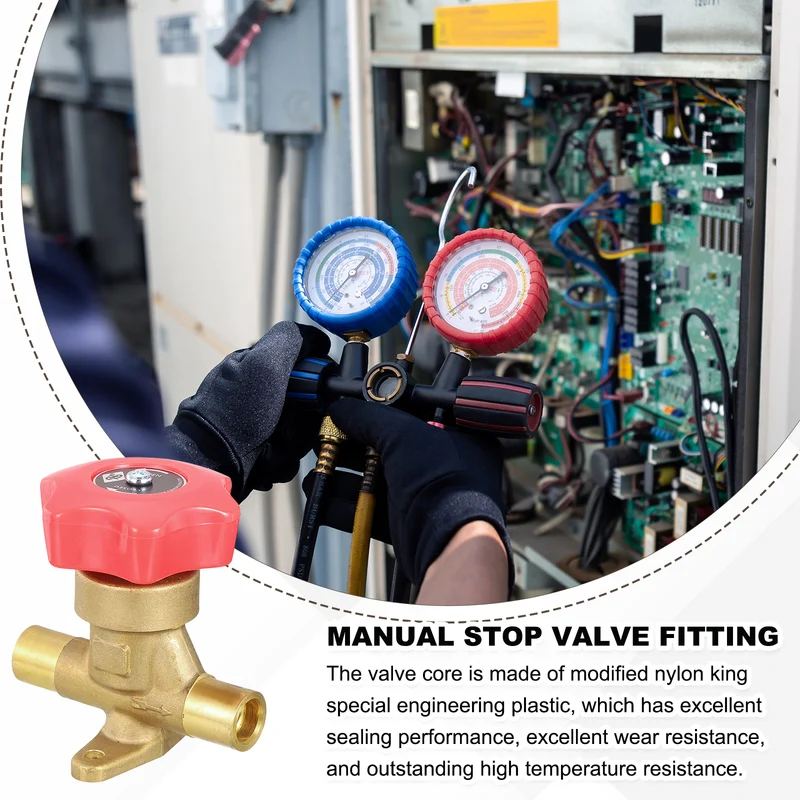

The valve core is made of modified nylon king special engineering plastic, which has excellent sealing performance, excellent wear resistance, and good high temperature resistance.
The handle valve is one kind of manual stop valve and applicable to one-way flow, it can be used for the refrigerant pipes of refrigeration and air conditioning units, heating equipment etc.

Instruction
Easy to use: Weld the hand valve to copper pipes at both ends. Turn the handwheel clockwise to close and counterclockwise to open, with only 1.5 turns needed for full open or closed state; during operation, adjust the handwheel rotation angle according to system flow requirements to control the valve opening.

Note
Please do not use under working conditions exceeding the rated working pressure of the product (4.5MPa) or unsuitable media.
