10Pcs FBS10-5 DIN Rail Terminal Block, 10 Position Press-Fit Jumper, Blue

SPECIFICATION:
Model: FBS10-5
Conductor Material: Tin-plated Brass
Sleeve Material: Nylon
Sleeve Color: Blue
Positions: 10
Pin Pitch: 5.2mm/0.2"

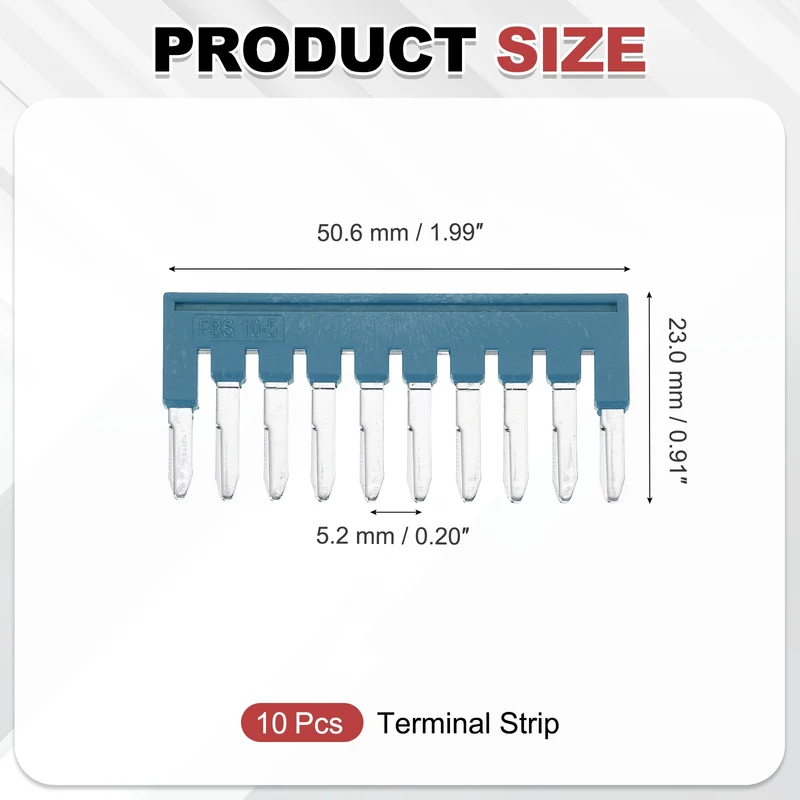

Total Size: 22.8 x 50.6mm / 0.9" x 1.99" (H x L)

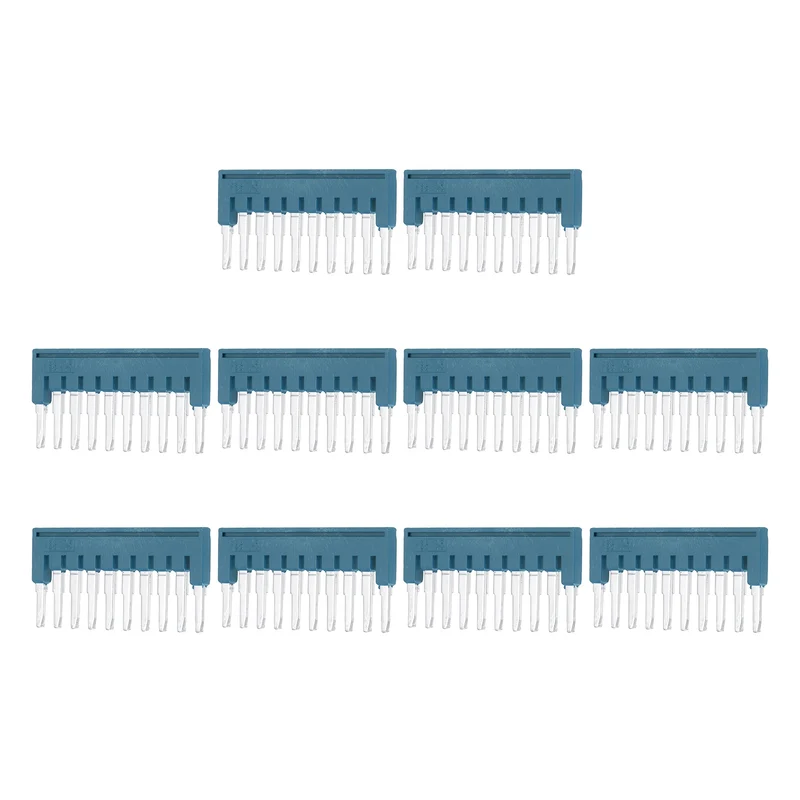

Package Contents: 10 pcs x Terminal Strip

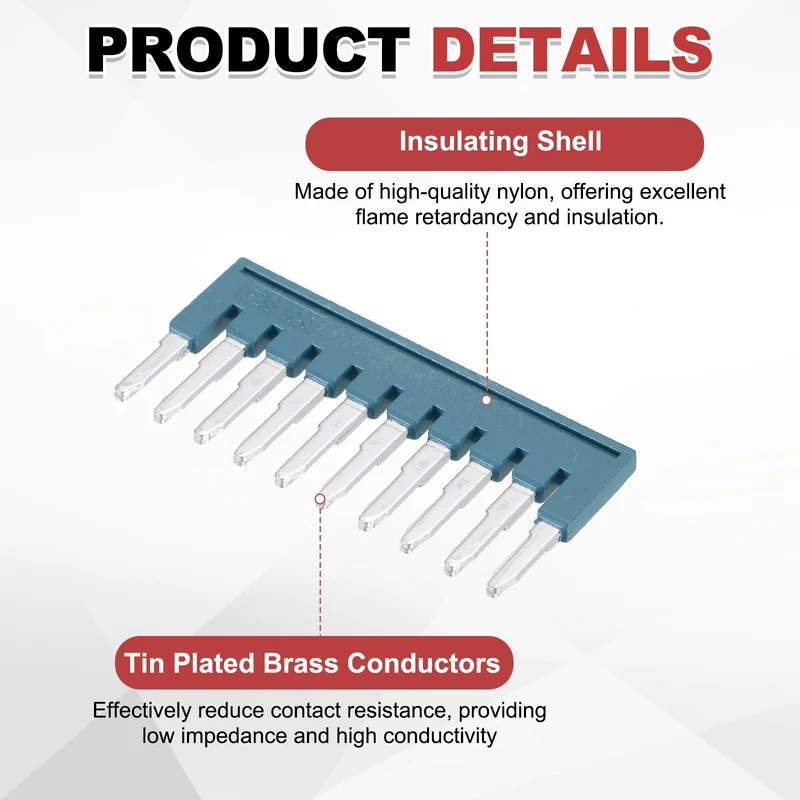

Excellent Material: This press-fit jumper is made of good conductive brass with a tin-plated surface, effectively reducing contact resistance and ensuring stable current transmission with low impedance when multiple terminals are connected in parallel. This jumper bar fits snugly with terminals, providing reliable conductivity for industrial and commercial electrical systems.

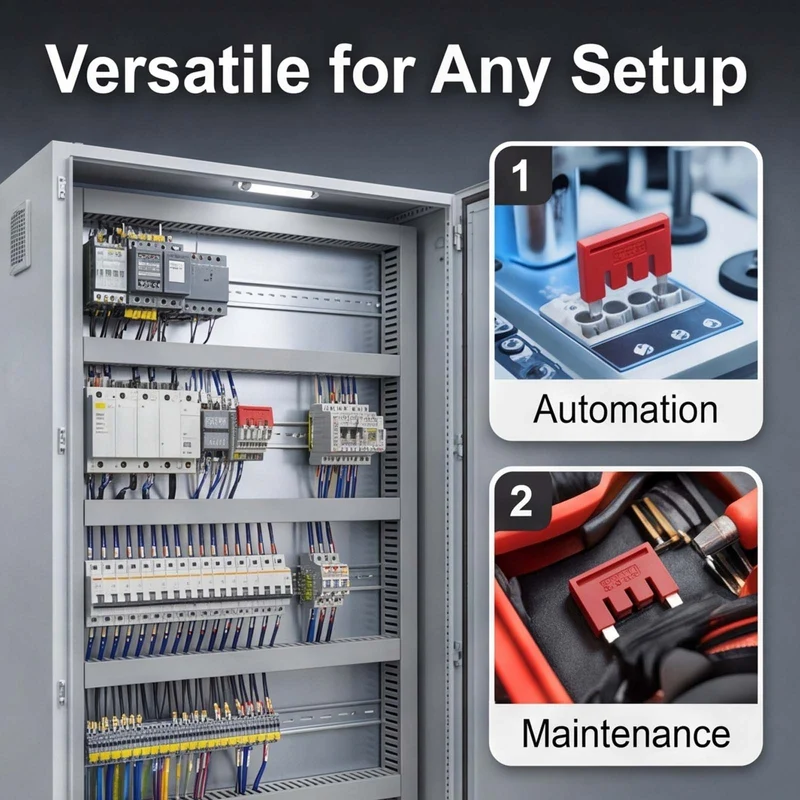

Wide Applications: This DIN rail terminal block is suitable for distribution boxes, industrial control cabinets, relay panels, and automation systems, as well as switching power, frequency converters, instrument terminal blocks, and shorting terminals at the same potential. This makes it a practical component for electricians and maintenance engineers.

Quick Installation: The integrated plug-in structure eliminates the need for screwdrivers or crimping pliers; simply insert the jumper wire directly into the slot for quick installation and removal, significantly improving connection efficiency.

Insulated Housing: The housing is made of a good insulating nylon material, covering the metal pins, effectively preventing accidental short circuits between adjacent terminals, ensuring reliable performance and a long service life. Provides blue insulating housings to help electricians identify circuits (such as positive and negative poles) and troubleshoot complex circuit faults.

Note: Please confirm that the spacing and pin width of your existing terminal blocks meet your requirements before purchasing.
